혼다 시빅 8세대 1.8 부품리스트 모음

March 13, 2023, 4:48 p.m., Mon, KST. SunJoo Moon

엔진, 채시, 전장등 혼다 시빅 8세대 1.8 부품리스트 모은것. Courtesy of Honda Motor, amayama.com, hondapartsnow.com

4 4,631

Product information

Purchase:	Please contact us for the purchase
Manufacturer:	혼다 (Japan)
Specifications:	TBC
Certificates:	혼다순정 & OEM

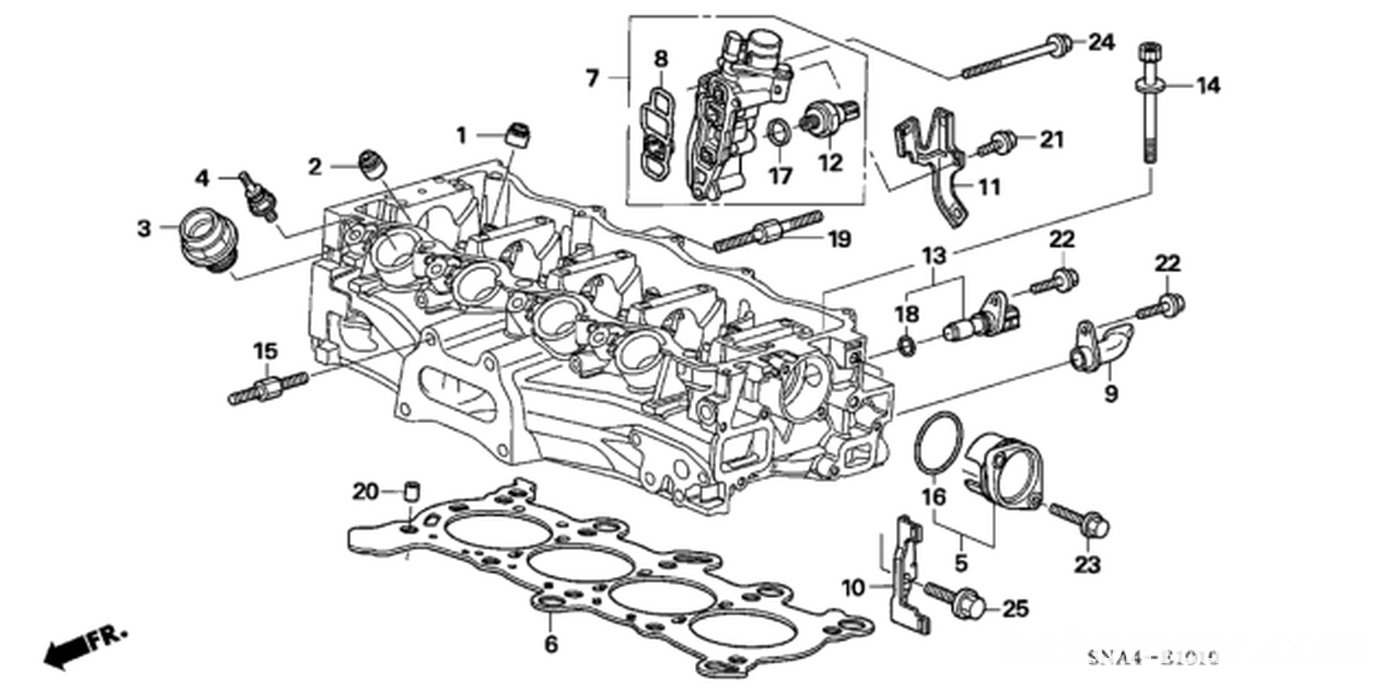

(REF#1,852 )

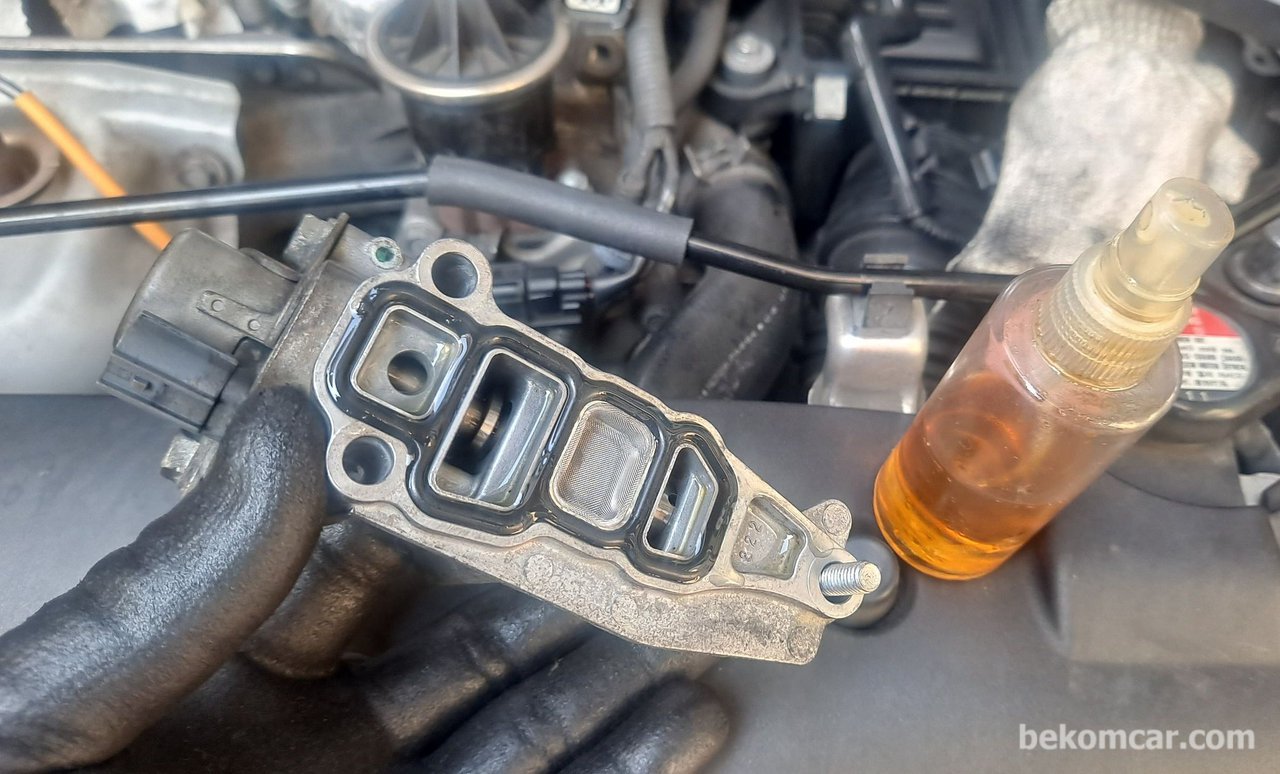

#8. 15826-RNA-A01. Filter Assy., Spool Valve
#16. 91302-PX4-004. O-Ring (46.8X2.2) (Nok). 1.9 x 1.9 x 0.1 inches
#17. 91319-PAA-A01. O-Ring (13X1.5). Oil Pressure
#18. 91333-PNA-003. O-Ring (15X1.9). TDC Sensor

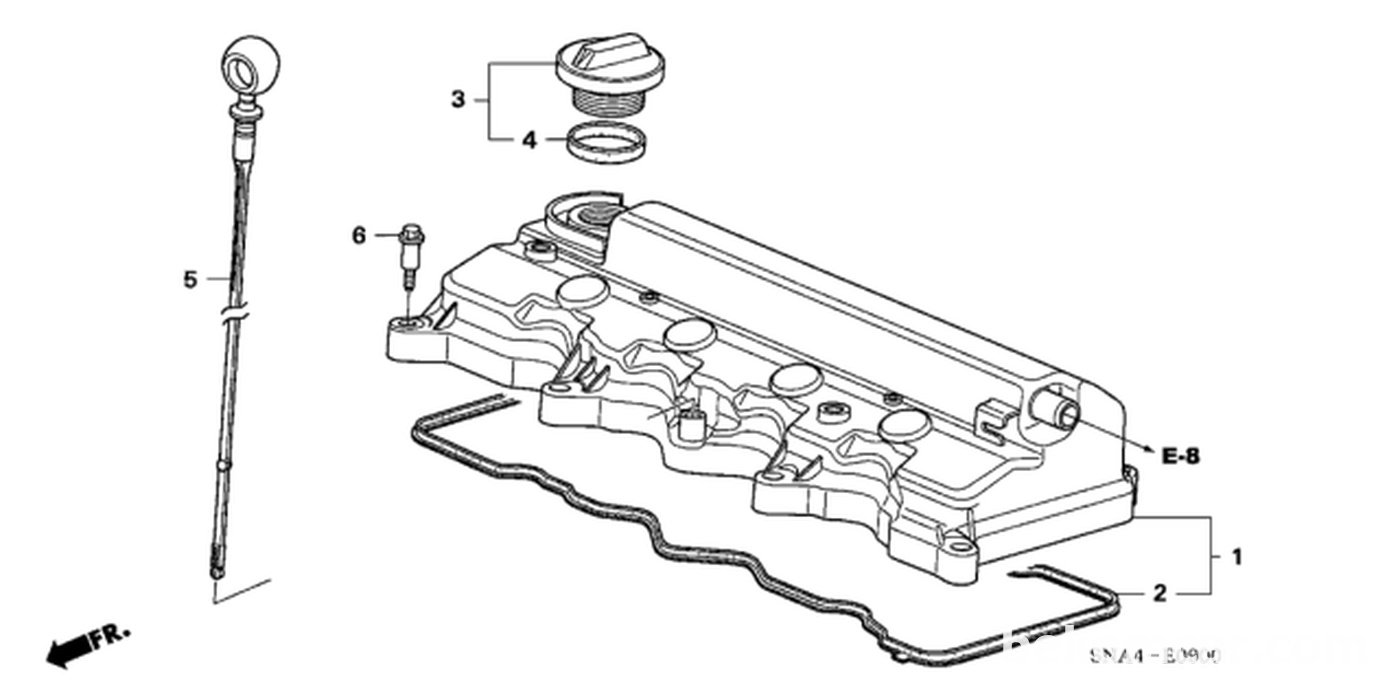

(REF#1,853 )

#2. 12341-RNA-A01. Gasket, Head Cover
#4. 15613-PC6-000. Gasket, Oil Filler

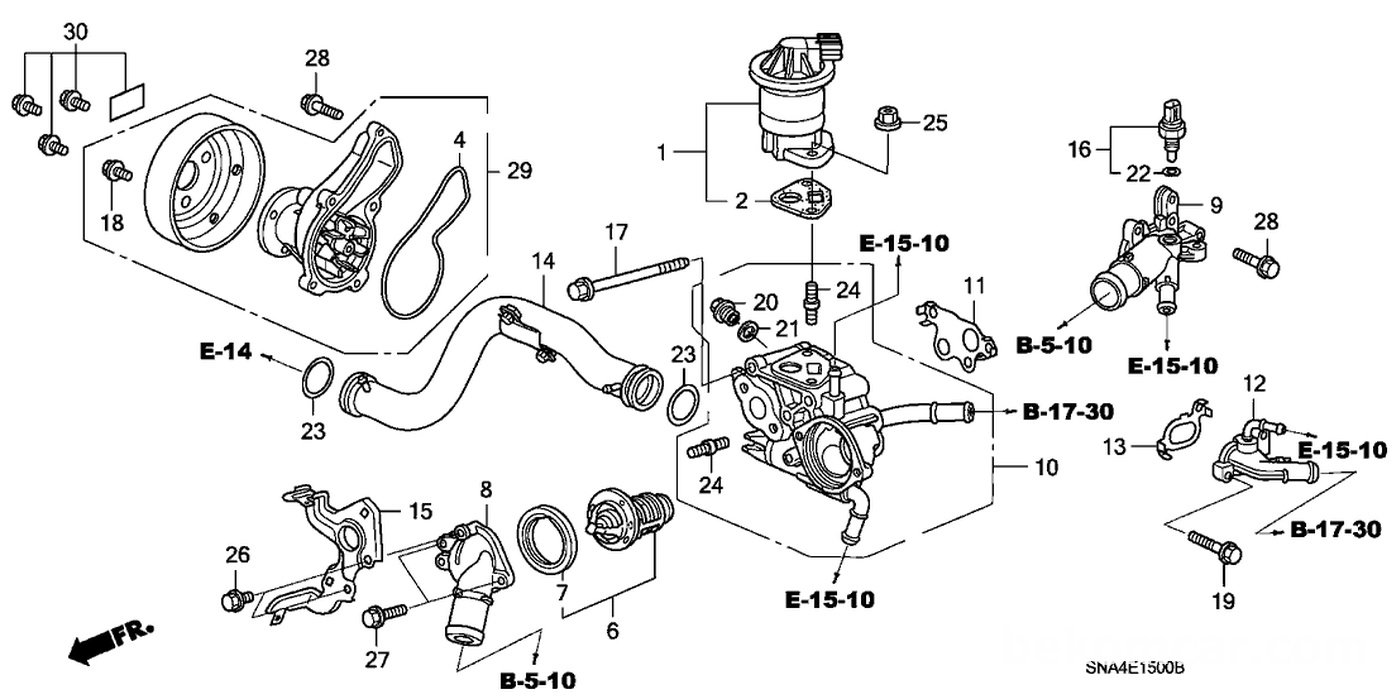

(REF#1,854 )

#2. 18715-PB2-000. Gasket, EGR Valve (Ishino Gasket)
#6. 19301-RNA-315. Thermostat Assembly (Fuji Seiko)

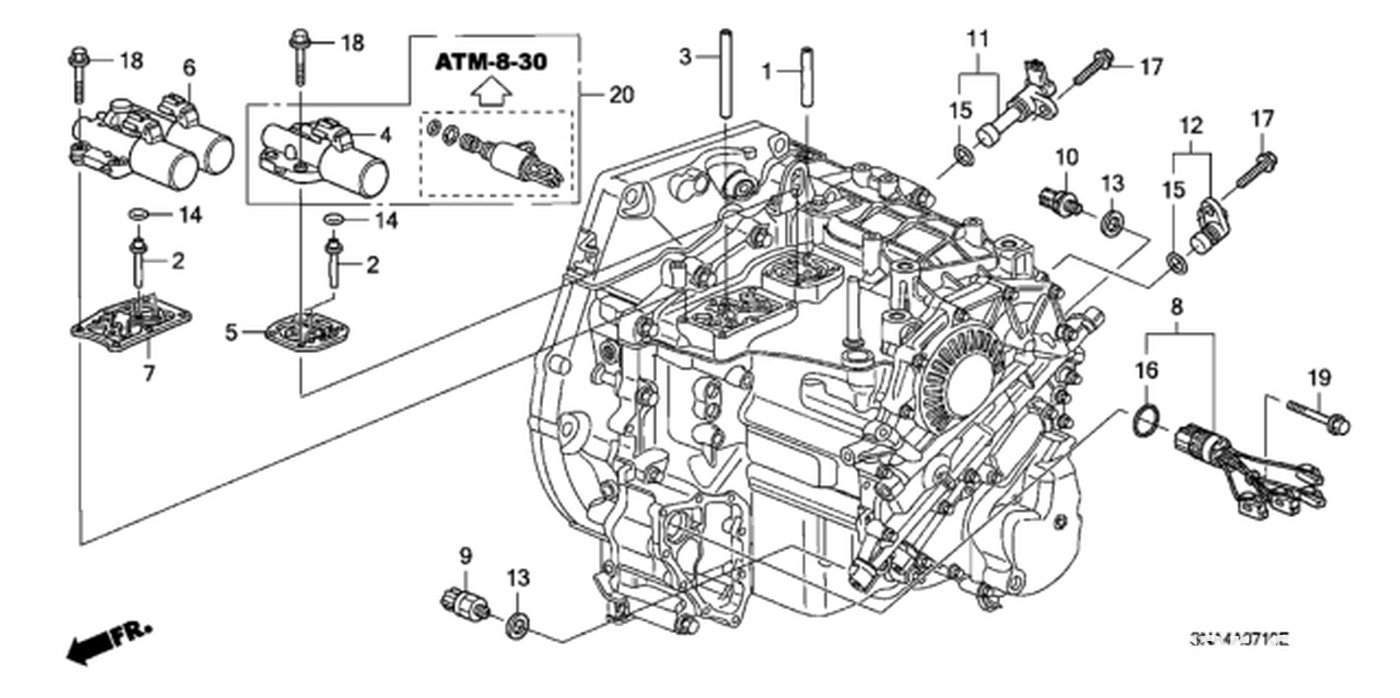

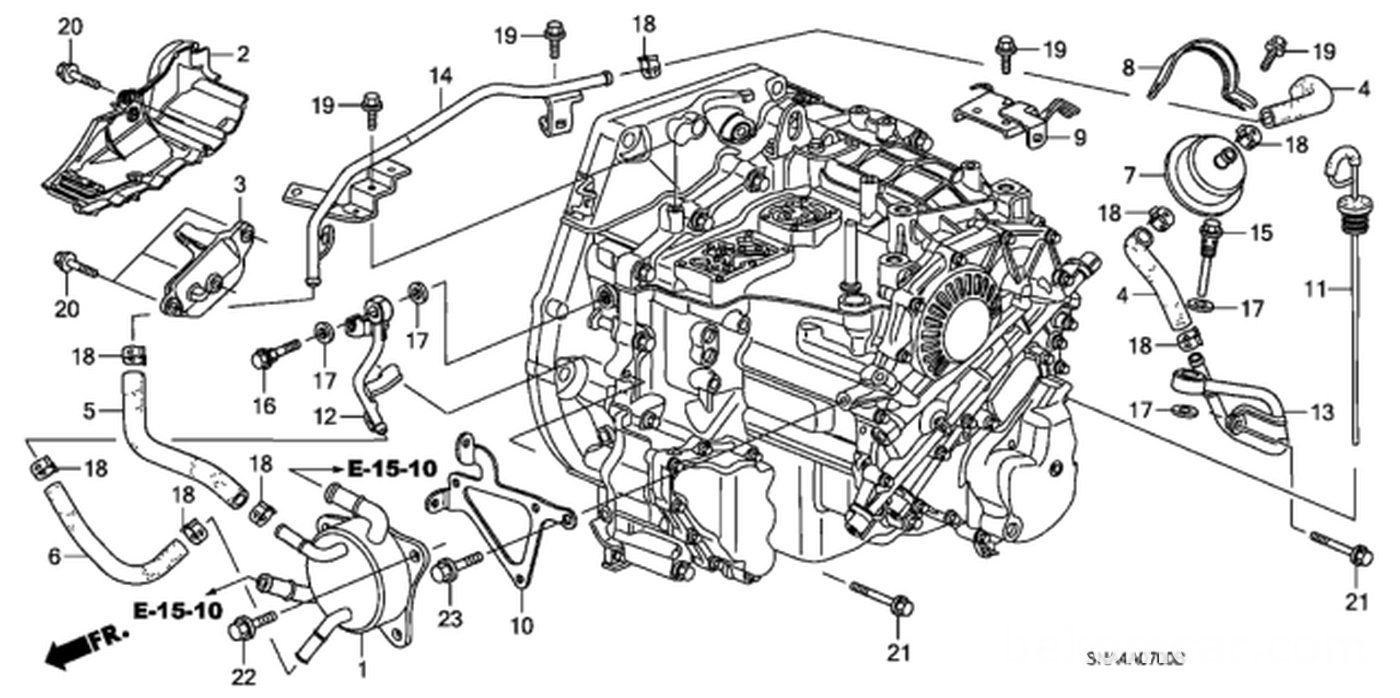

(REF#1,855 )

#5. 28252-RPC-000. Gasket A, Linear Solenoid
#7. 28262-RPC-000. Gasket B, Linear Solenoid
#13. 90471-PW7-A00. Gasket (10MM). Switch Assembly AT Oil Pressure

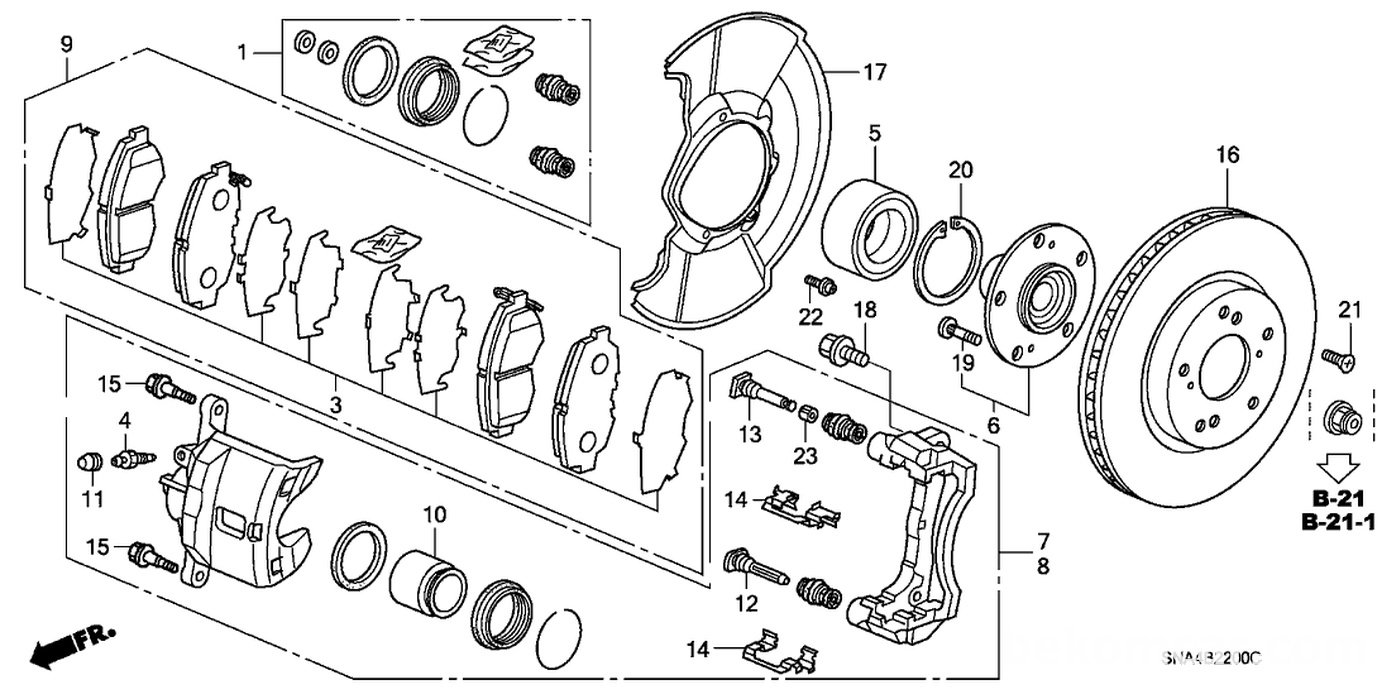

(REF#1,856 )

#1. 01463-S5D-A00. Caliper Set, FR.
#9. 45022-SNE-A00. Pad Set, Front

(REF#3,374 )

#12. Honda 91345-RDA-A01 O-Ring (13.0X1.9)
#15. Honda 91347-PAA-A01 O-Ring (16.7X1.8)

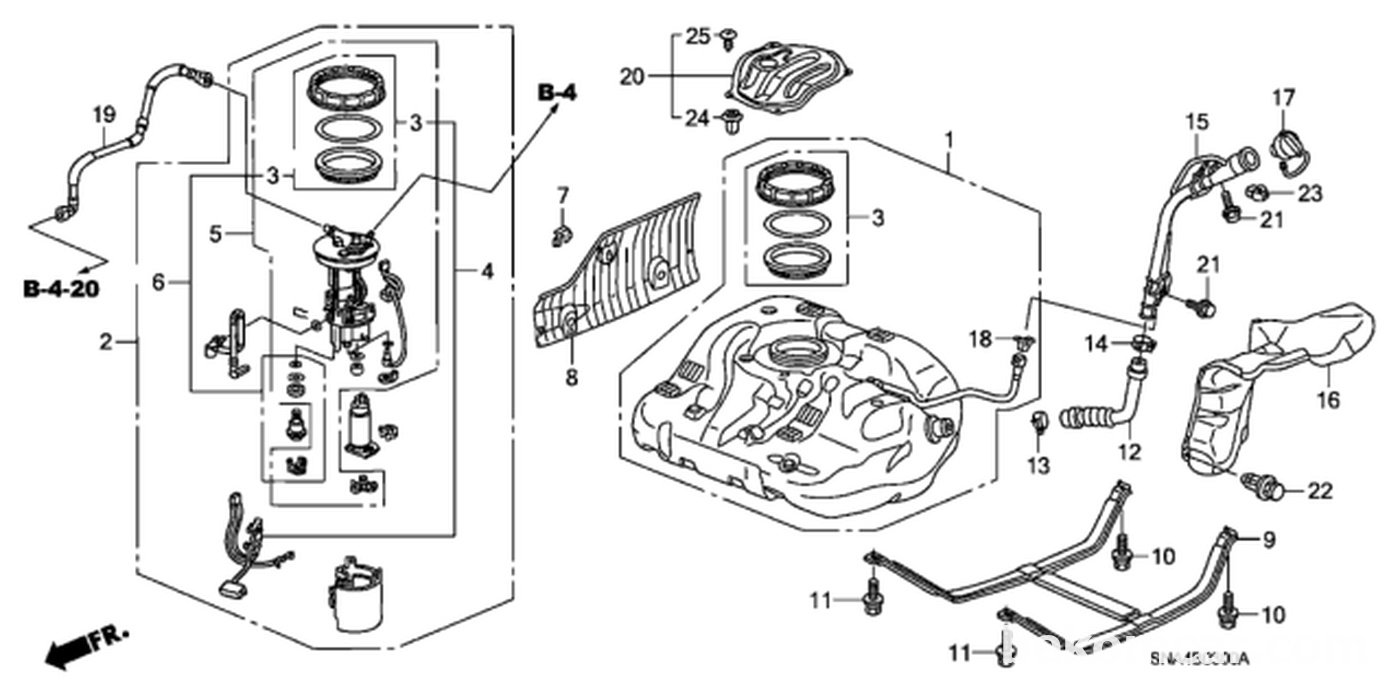

(REF#3,375 )

#5. 연료필터 17048-SNA-A01 Filter Set, Fuel

(REF#3,376 )

#1. PCV밸브 17130-PND-A01 Valve Assembly, Pcv

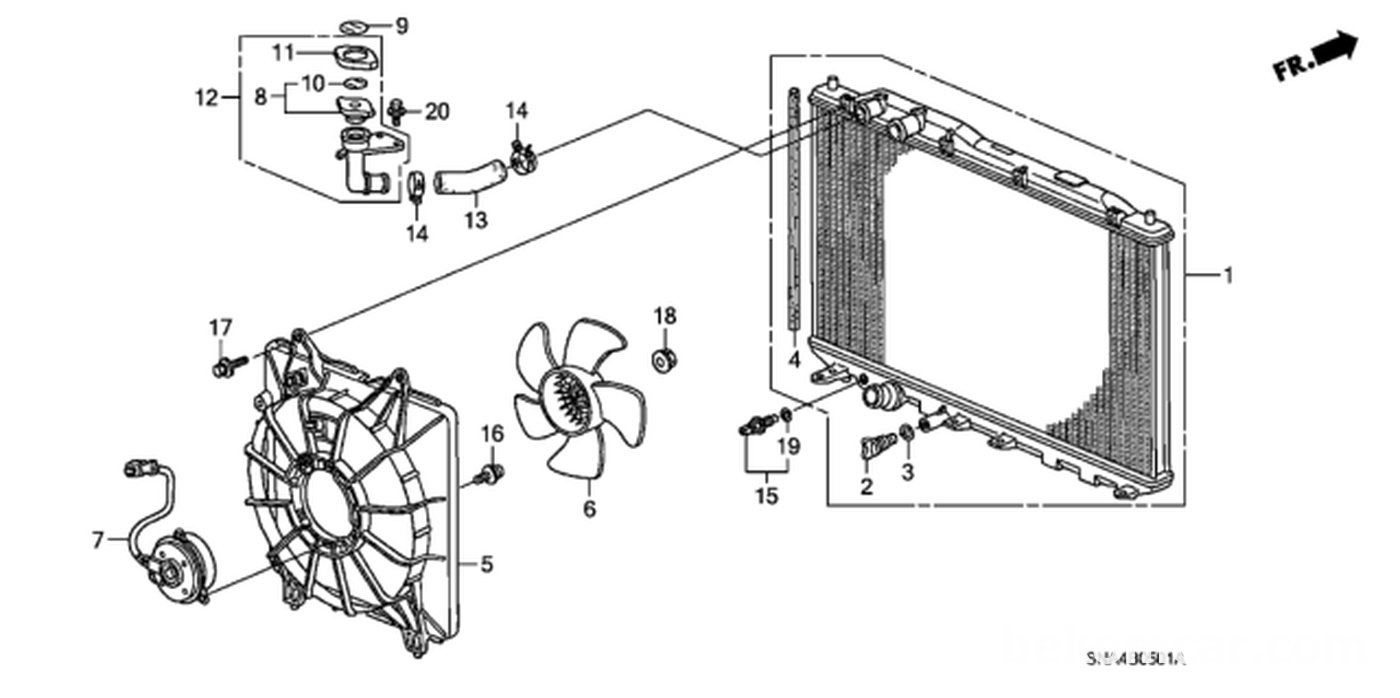

(REF#3,377 )

#7. 쿨링팬 19030-RNA-A51 Motor, Cooling Fan
#8. 라디에이터 캡 19045-RAA-003 Cap, Radiator (Denso)
#15. 온도센서 37870-RTA-005 Sensor Assembly, Water

(REF#3,378 )

#7. 미션액필터 (25430-PLR-003 Filter (ATF))

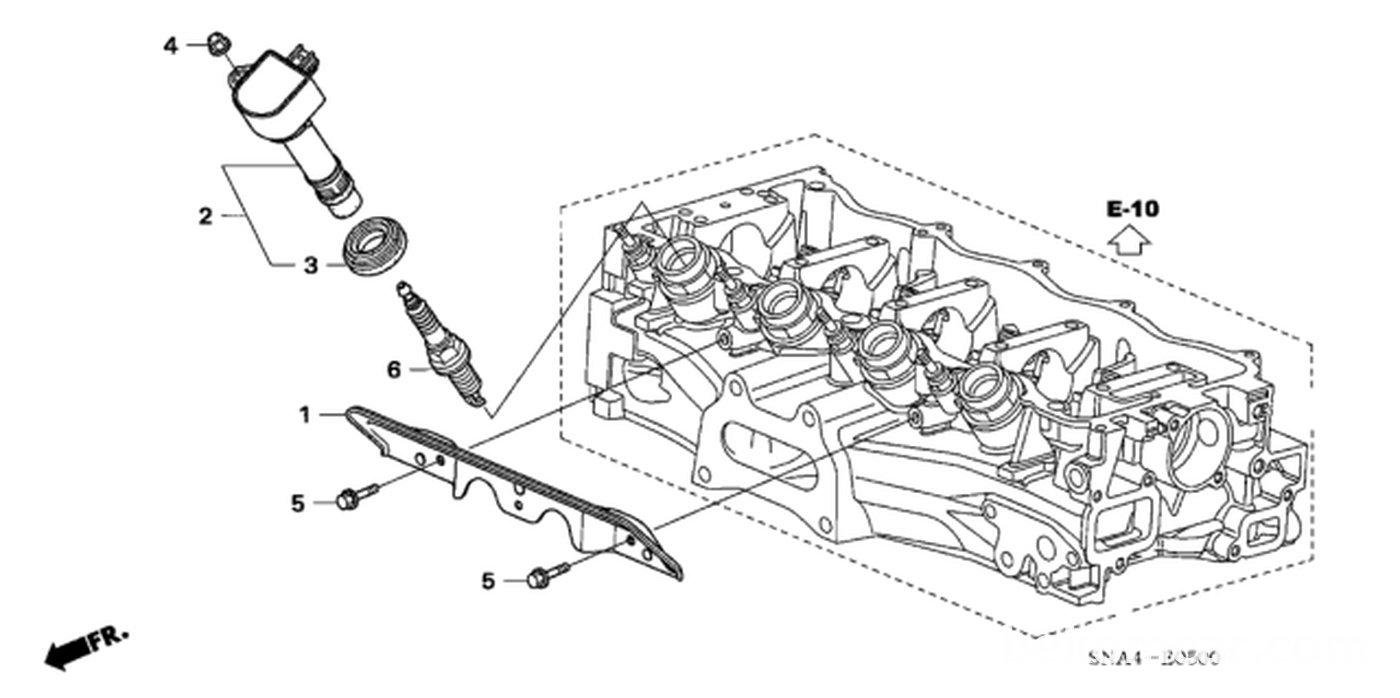

(REF#3,379 )

#2. 점화코일 30520-RNA-A01 Coil, Plug Hole
#6. 점화플러그 9807B-561BW Spark Plug (Izfr6K-11S)

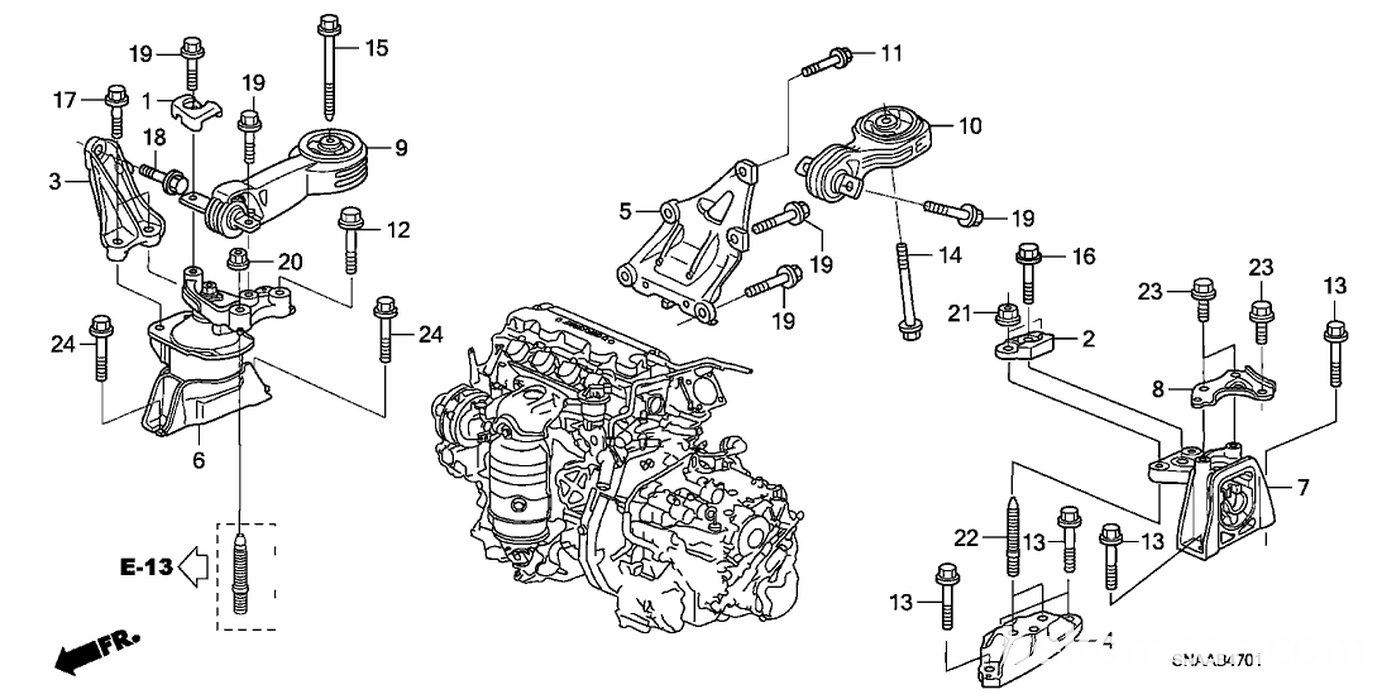

(REF#3,453 )

#6. 50820-SNA-033 Rubber Assy., Engine Side Mounting
#7. 50850-SNA-A82 Rubber Assy., Transmission Mounting
#9. 50880-SNA-A82 Rod, Torque (Upper)
#10. 50890-SNA-A82 Rod, Torque (Lower)

(REF#4,194 )

#1. 실린더헤드 플러그 12513-P72-003 Plug, Cylinder Head
#3. O-Ring Set, Oil Pump 15101-RNA-A00
#6. Gasket 15221-RNA-A01
#12. Oil Seal 91212-R1B-A01

(REF#6,231 )

#12. 37980-RNA-A01, METER ASSY., AIR FLOW (About U$139)

(REF#6,232 )

#21. 91209-612-003, Oil Seal (12X22X7) (Arai), Shift Shaft Seal. (Replaces
91209-612-000, 91209-612-005)

SunJoo Moon , Create Date: March 13, 2023, 4:48 p.m.

(4)Login for comments

Need to login to leave the comments

May 5, 2026, 9:01 p.m. - SunJoo Moon moderator ¶

#6231 MAF for the below cars.
Honda Accord Honda Accord Tourer Honda CR-V Honda City Honda Civic Honda Crossroad Honda FR-V Honda Fit Honda Freed Honda Inspire Honda Jazz Honda Legend Honda Pilot Honda Stream

D17A2 J30A4 J35A8 J35Z2 J35Z4 J37A J37A2 J37A3 K20A7 K20A8 K20A9 K20Z3 K20Z4 K24A4 K24A8 K24Z1 K24Z2 K24Z3 K24Z4 L12B2 L13A7 L13Z1 L13Z2 L15A7 LDA2 N22A1 N22A2 N22B1 N22B2 R16A1 R16A2 R18A R18A1 R18A2 R20A1 R20A2 R20A3

May 5, 2026, 9 p.m. - SunJoo Moon moderator ¶

See https://www.youtube.com/watch?v=pbgMAyM31UI for REF#6232, Shift Shaft Seal location

May 5, 2026, 8:47 p.m. - SunJoo Moon moderator ¶

This comment has been removed.

Dec. 8, 2024, 1:03 p.m. - SunJoo Moon moderator ¶

PLUG, CYLINDER HEAD #12513-P72-003는 아래의 차량에도 공통으로 사용된다. 그래도 아래는 참고로만 하고, 꼭 혼코에 재 확인후에 구입한다.

Honda Accord Honda Accord Tourer Honda Airwave Honda Ballade Honda CR-V Honda CR-X Honda CR-X del Sol Honda City Honda Civic Honda Civic Aerodeck Honda Civic CRX Honda Civic Ferio Honda Crossroad Honda Domani Honda Edix Honda FR-V Honda Fit Honda Fit Aria Honda Freed Honda Insight Honda Integra Honda Jazz Honda Logo Honda Mobilio Honda Mobilio Spike Honda Orthia Honda Partner Honda Prelude Honda S-MX Honda Stream
Courtesy of amayama.com
