Picoscoft 2204A PC 오실로스코프
전기신호 파형분석, 자동차 센서등 파형분석. 인젝터,점화코일, 점화플러그, 크랭크센서, MAF센서, 시동모터, 연료펌프, 알터네이터 등 자동차 과학적 진단에 사용
Product information

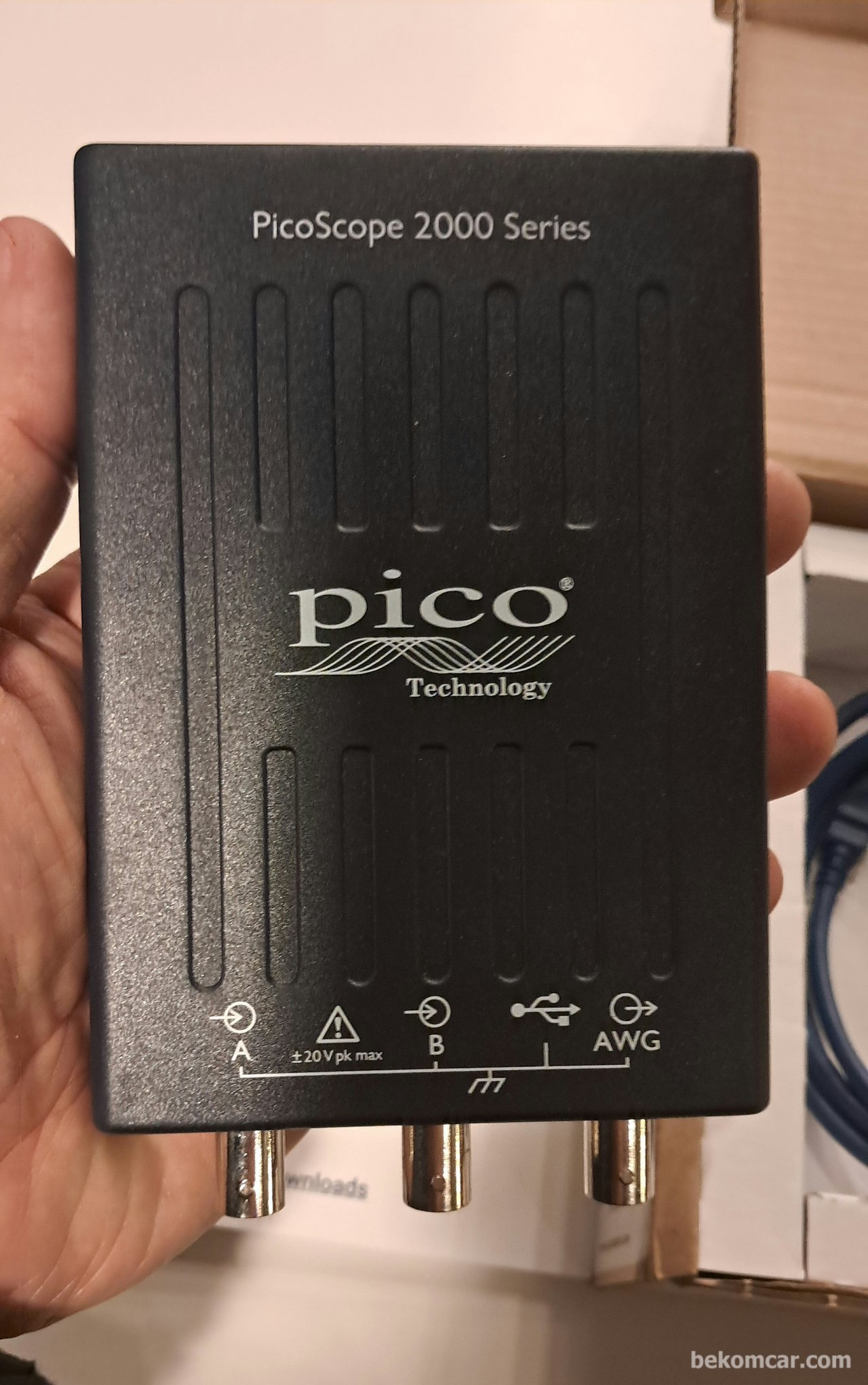

![Click for slide show Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/12/watermarked/2a2690ef0920c1e138f29d0d3883c4208b10d9ec.jpeg)
Purchase: | Please contact us for the purchase |
---|---|
Manufacturer: | Picotech.com (United Kingdom) |
Specifications: | 8bits at 100M/s, 10Mhz, TA20, 8ks, 20V |
Pros: | 무척휴대가 편하게 작다. 소프트웨어가 가장 좋은것중 하나이다 |
Cons: | 처리전압이 20V이다. 그래서 Attenuator를 사용해야한다 |
Certificates: | CE |

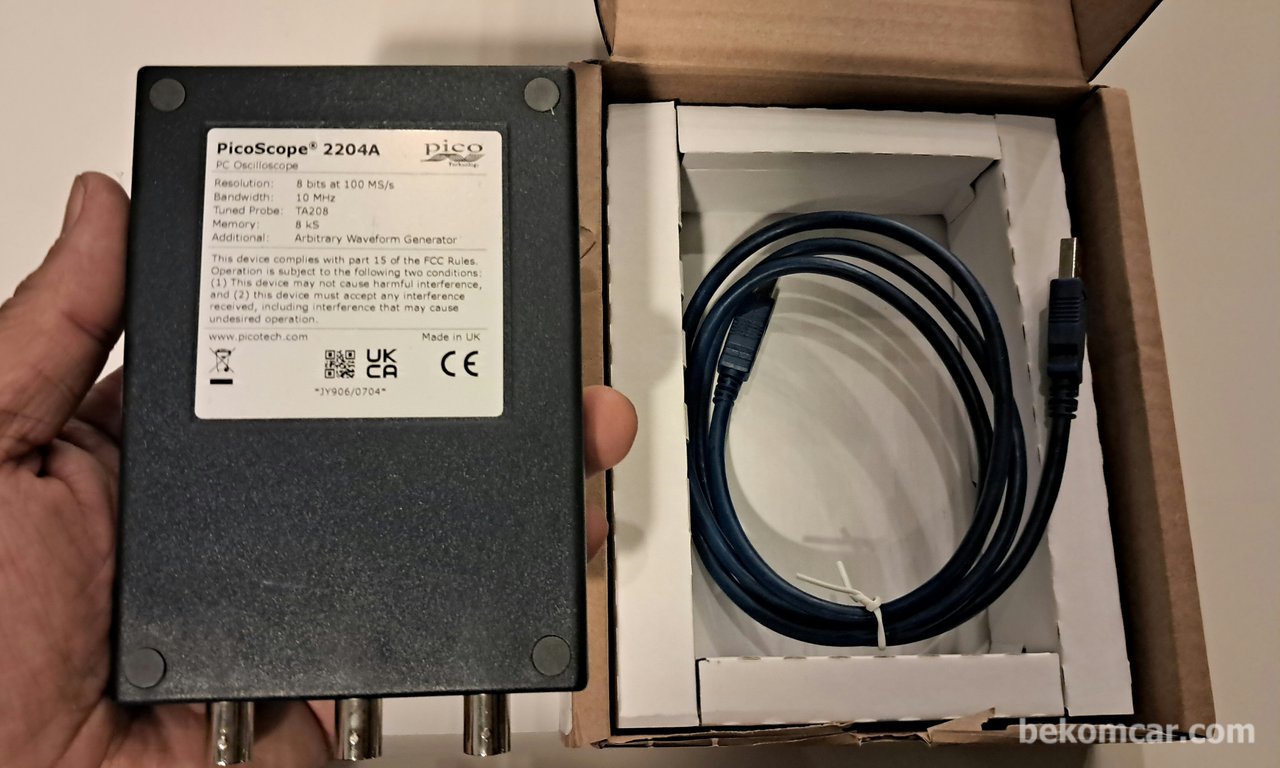

![Click for slide show Top Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/0c6746336333ebdfa25346622c6e8338b4f6a97c.jpeg)

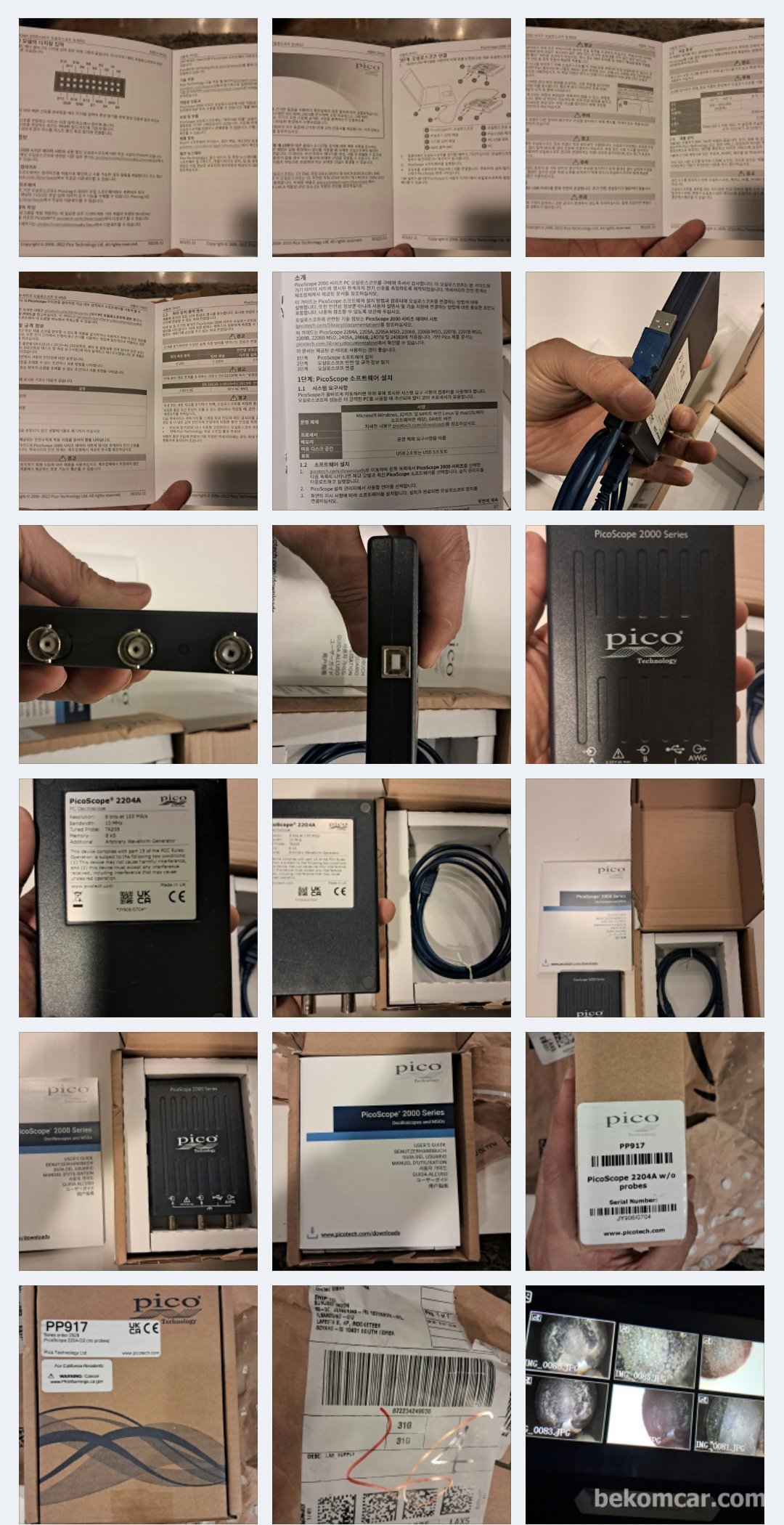

![Click for slide show Bottom Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/210faeb02b48d39a478af4b960600e69e6728a54.jpeg)

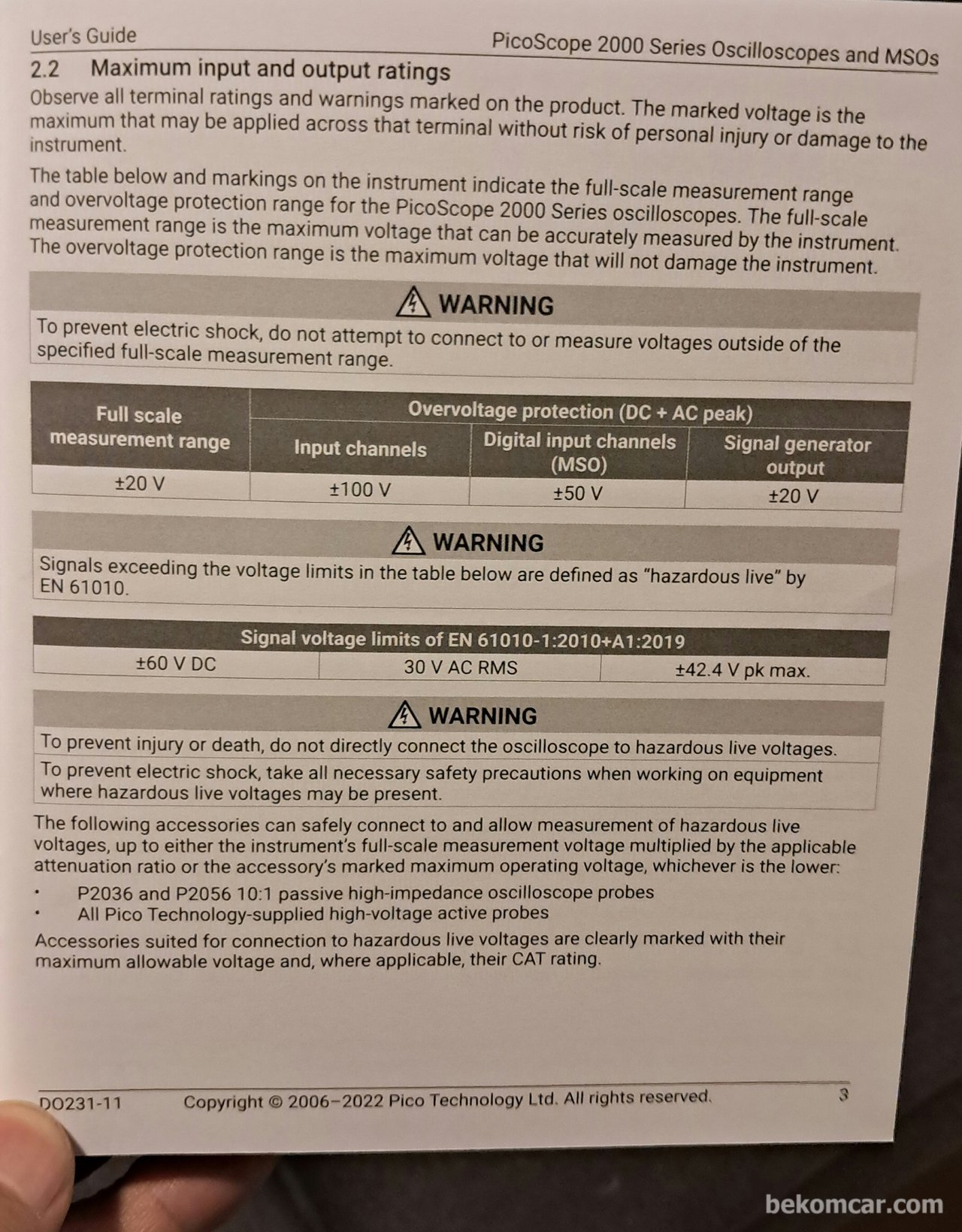

![Click for slide show Left Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/24a5acc792652e4123504f5702c14ebe5debc32b.jpeg)

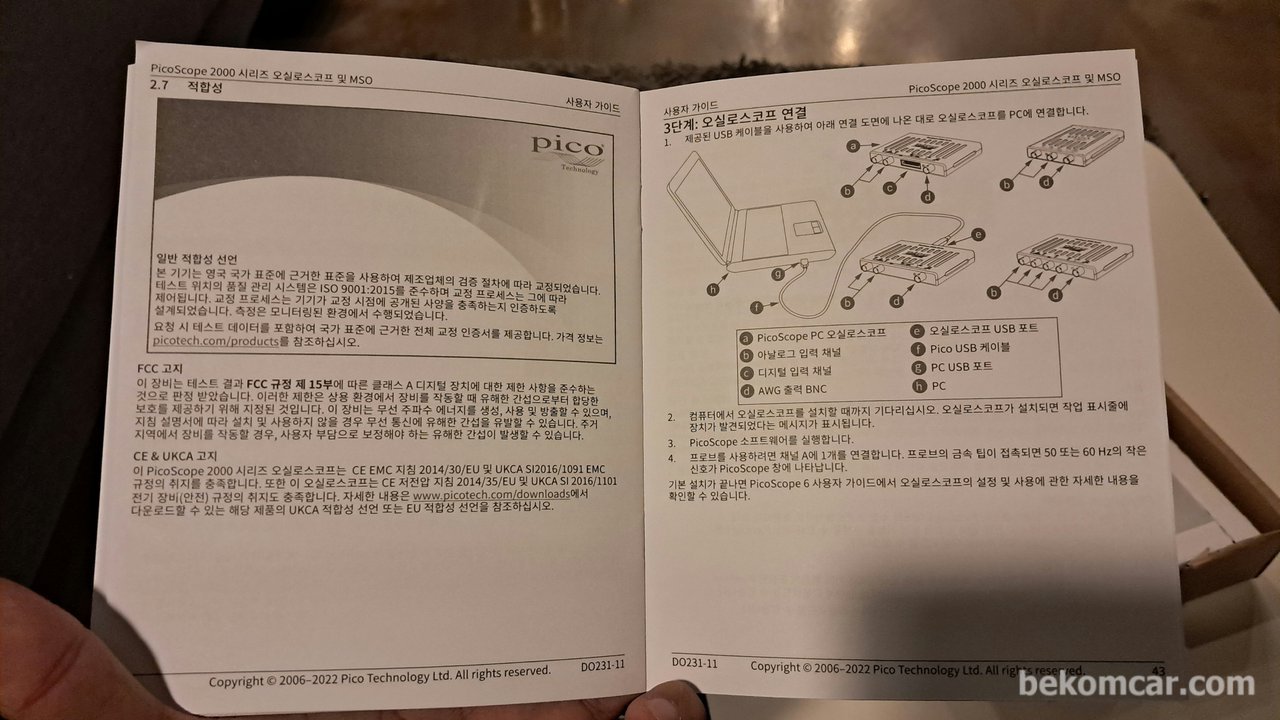

![Click for slide show Right Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/96a18331bdff6e686d48161a5745bd557353cc79.jpeg)

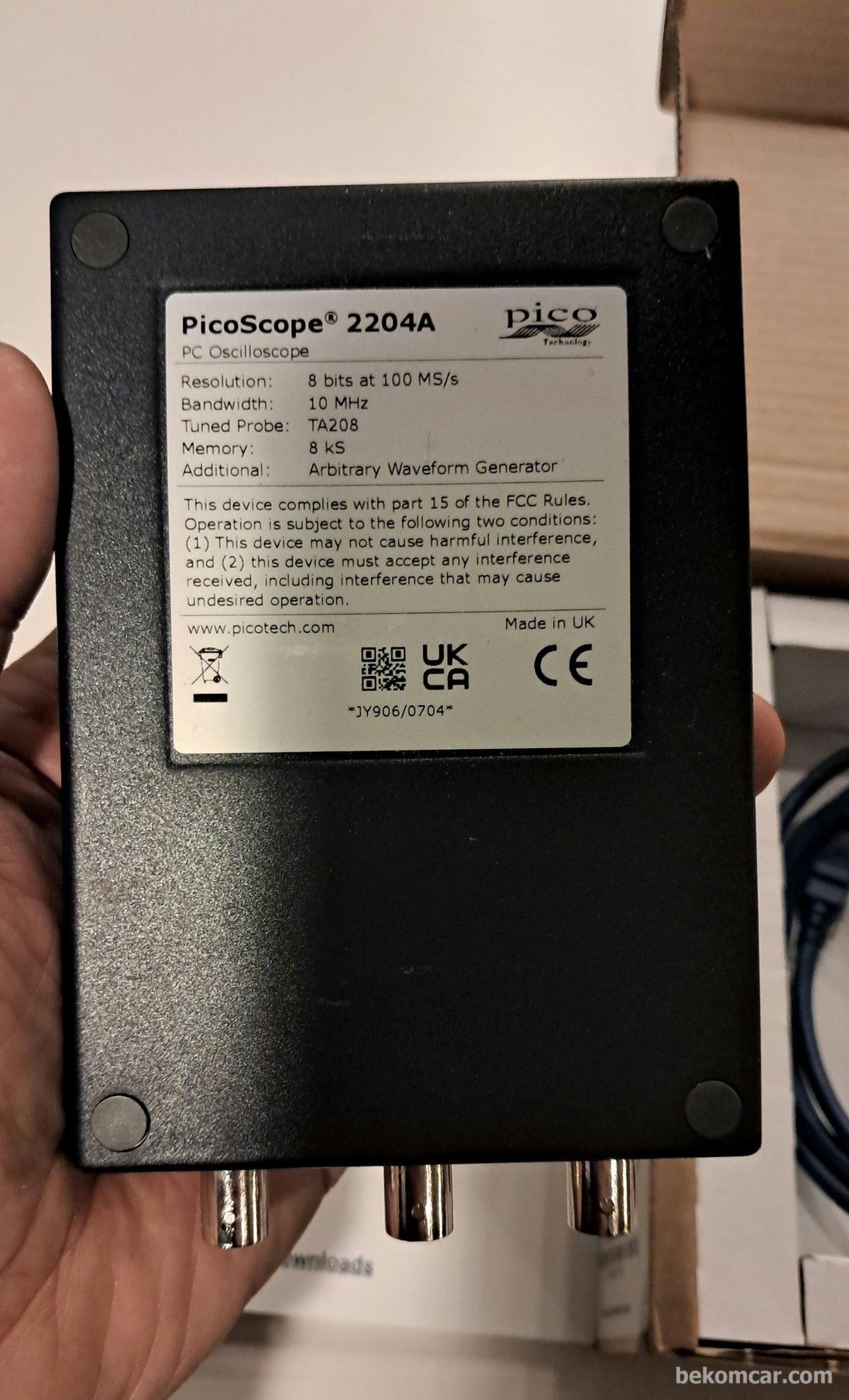

![Click for slide show Front Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/3b1535e134a6dc5dde9d6897f488dca2396ada1a.jpeg)
![Click for slide show Rear Image-Picoscoft 2204A PC 오실로스코프|bekomcar.com](/media/img/2024/03/23/11/watermarked/8ea7c74ed697240ef32483f885e2a6b36e4e9200.jpeg)
![혼다 어코드 2016년 2.4L 인젝터, 점화1차 및 2차 파형측정|bekomcar.com](/media/cache/a4/2b/watermarked/ff7b8f5877934b41f89cc62fe0378033bda21a9e.jpg)

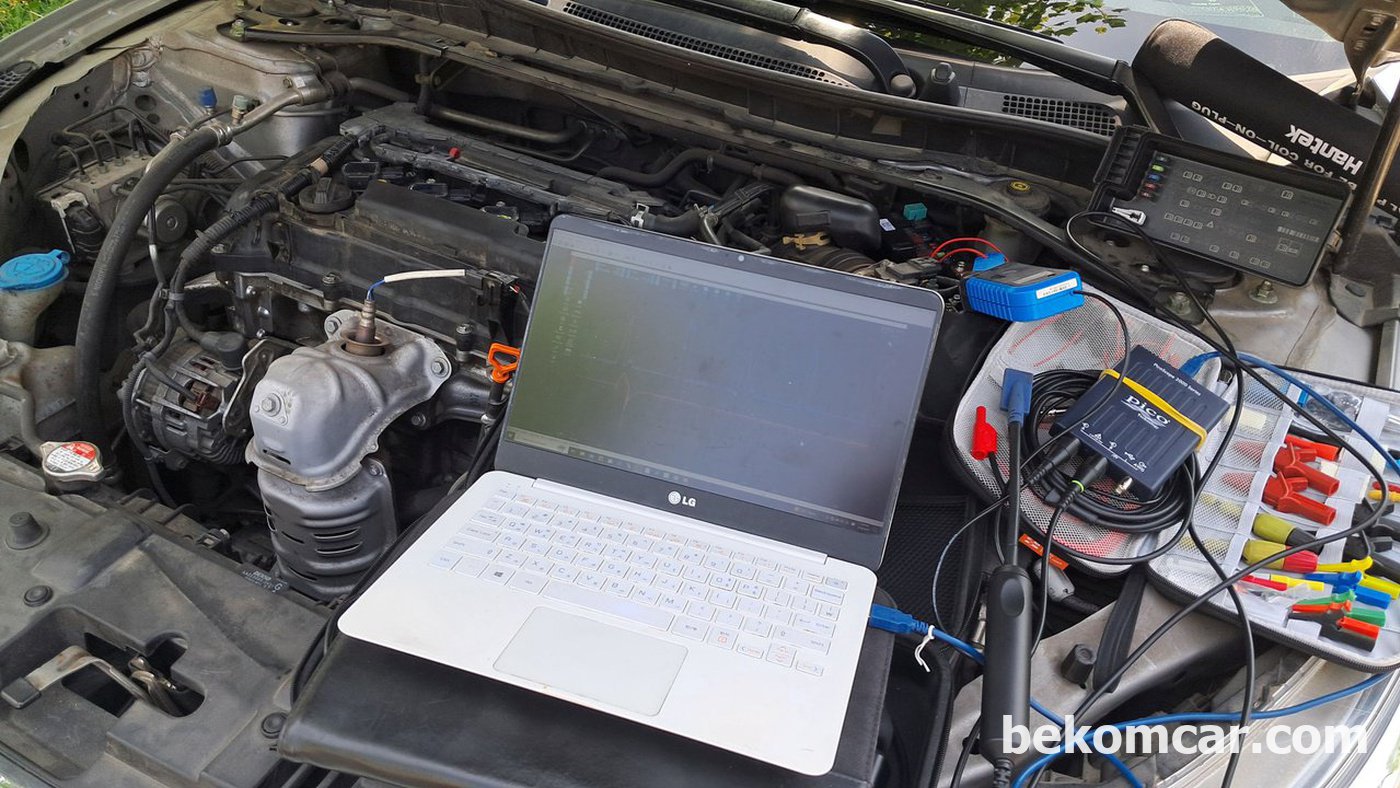

혼다 어코드 2016년 2.4L 인젝터, 점화1차 및 2차 파형측정
![Application Integration|bekomcar.com](/media/cache/e8/ae/watermarked/43651883afcbf683e7af2fa0a6ae7eecddf34253.jpg)

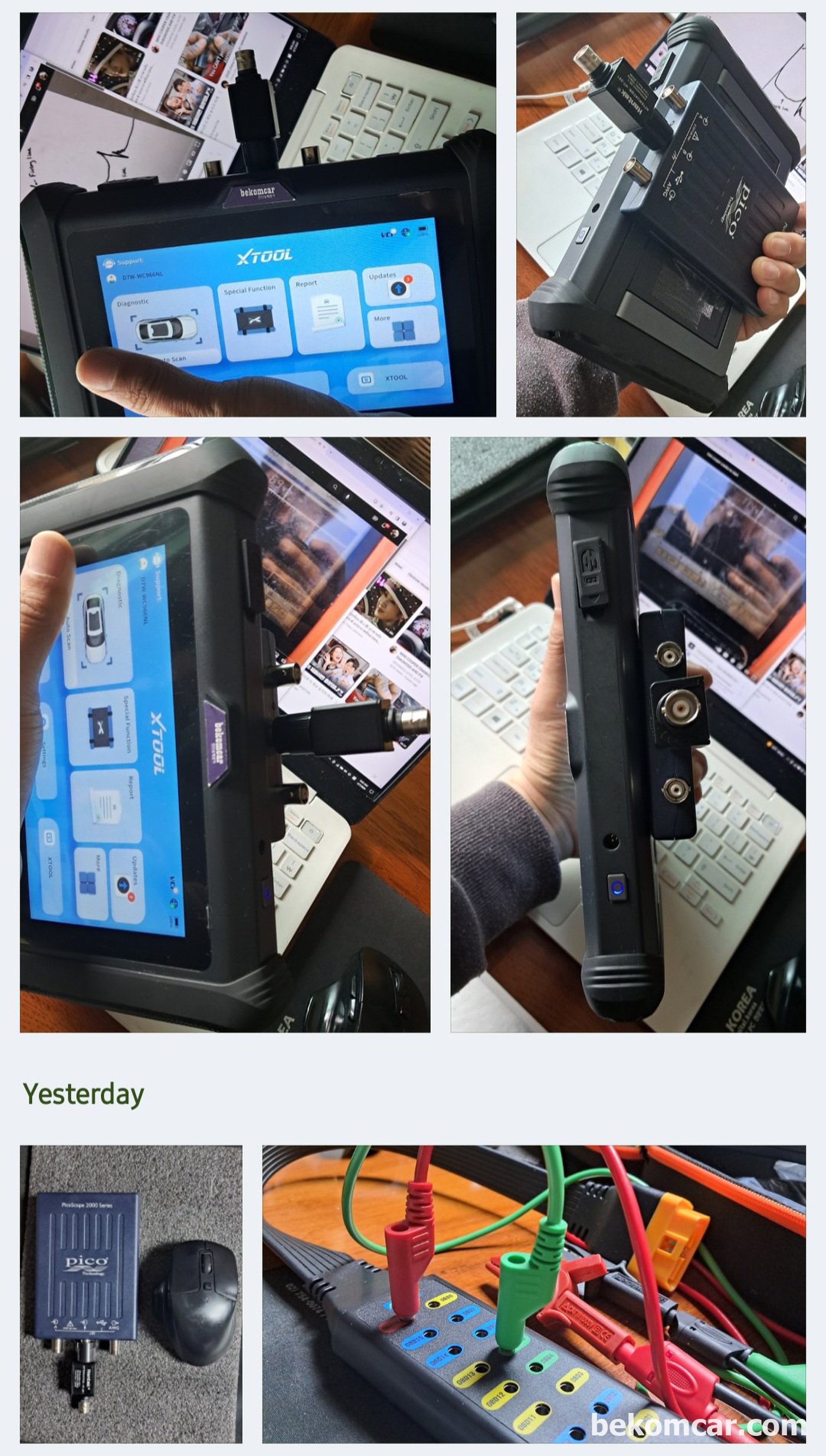

Application Integration

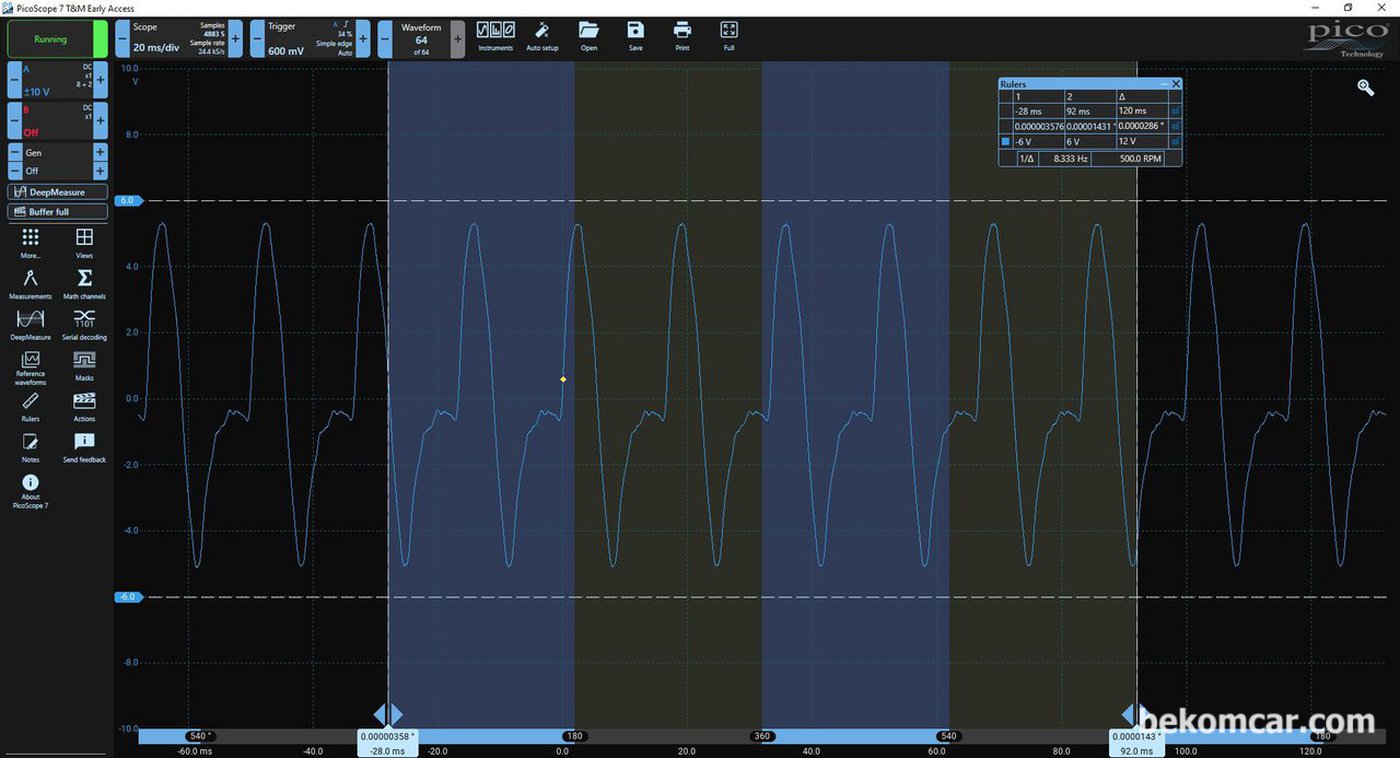

![피코스코프 2204A PicoScope 2204A WaveForm Analysis, Human Body. But still software frozen and USB Device Not Recognized error pops up.|bekomcar.com](/media/cache/6c/2d/watermarked/dd80376c97b7af72c690dc204a76d48da4e665c9.jpg)

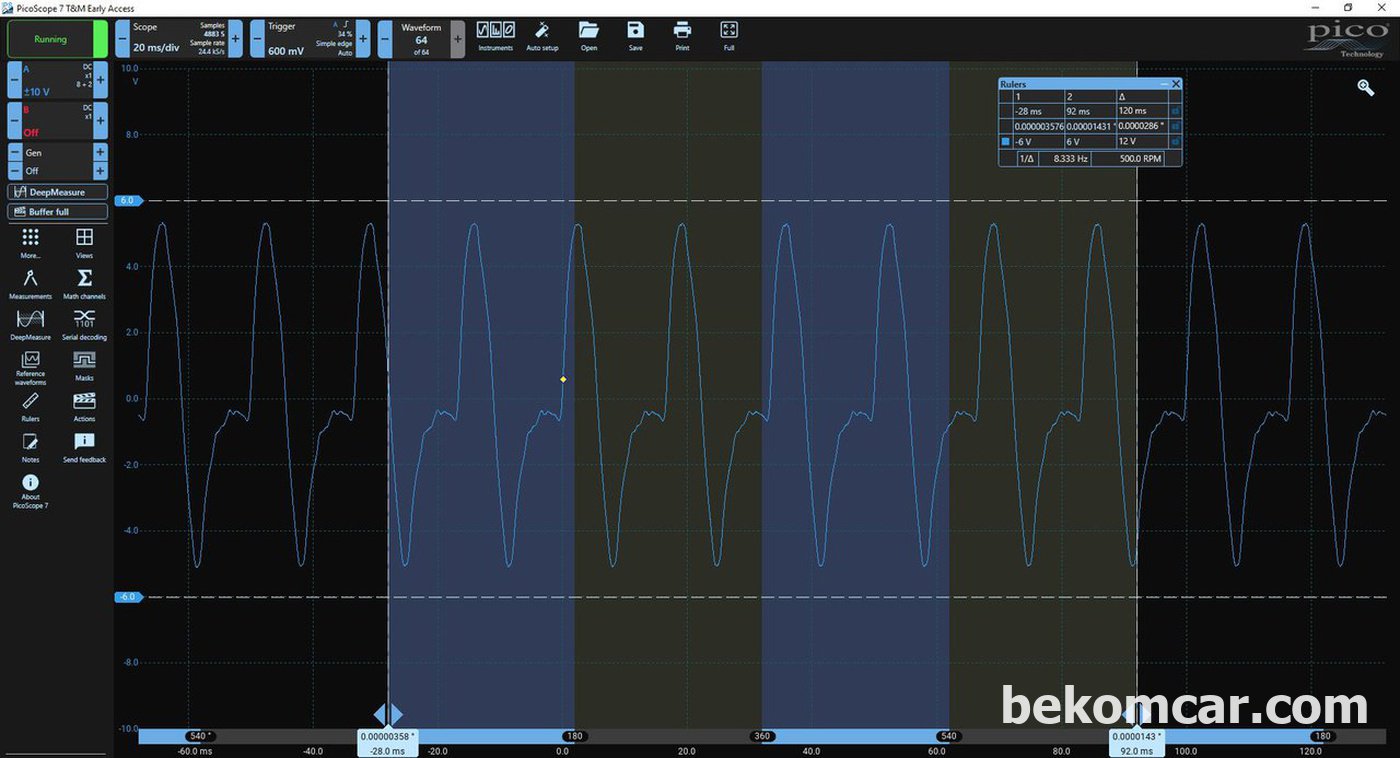

피코스코프 2204A PicoScope 2204A WaveForm Analysis, Human Body. But still software frozen and USB Device Not Recognized error pops up.
![Uninstalled the existing driver and resinstalled the driver and it seems the installation worked....|bekomcar.com](/media/cache/8e/74/watermarked/5b1fcb87c2fd7281b56640cf9324e3adda2d2e93.jpg)

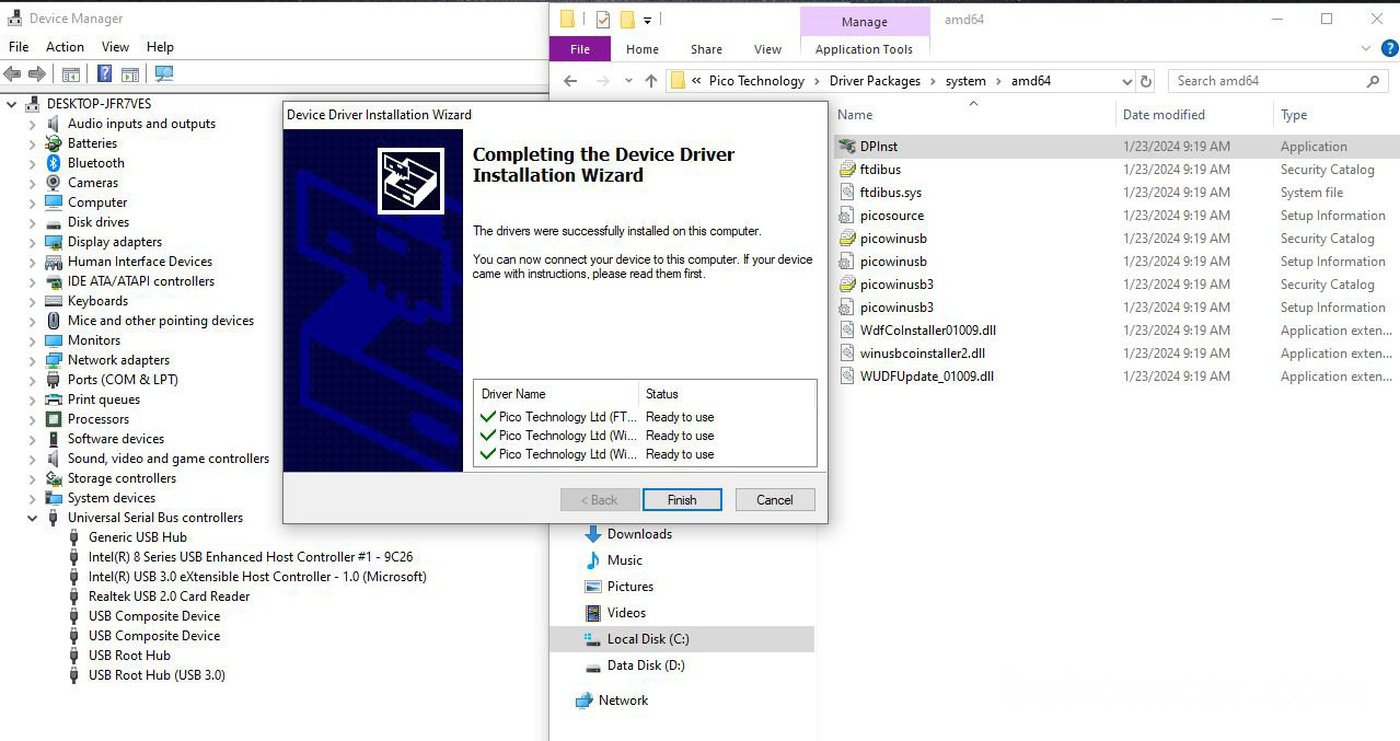

Uninstalled the existing driver and resinstalled the driver and it seems the installation worked....

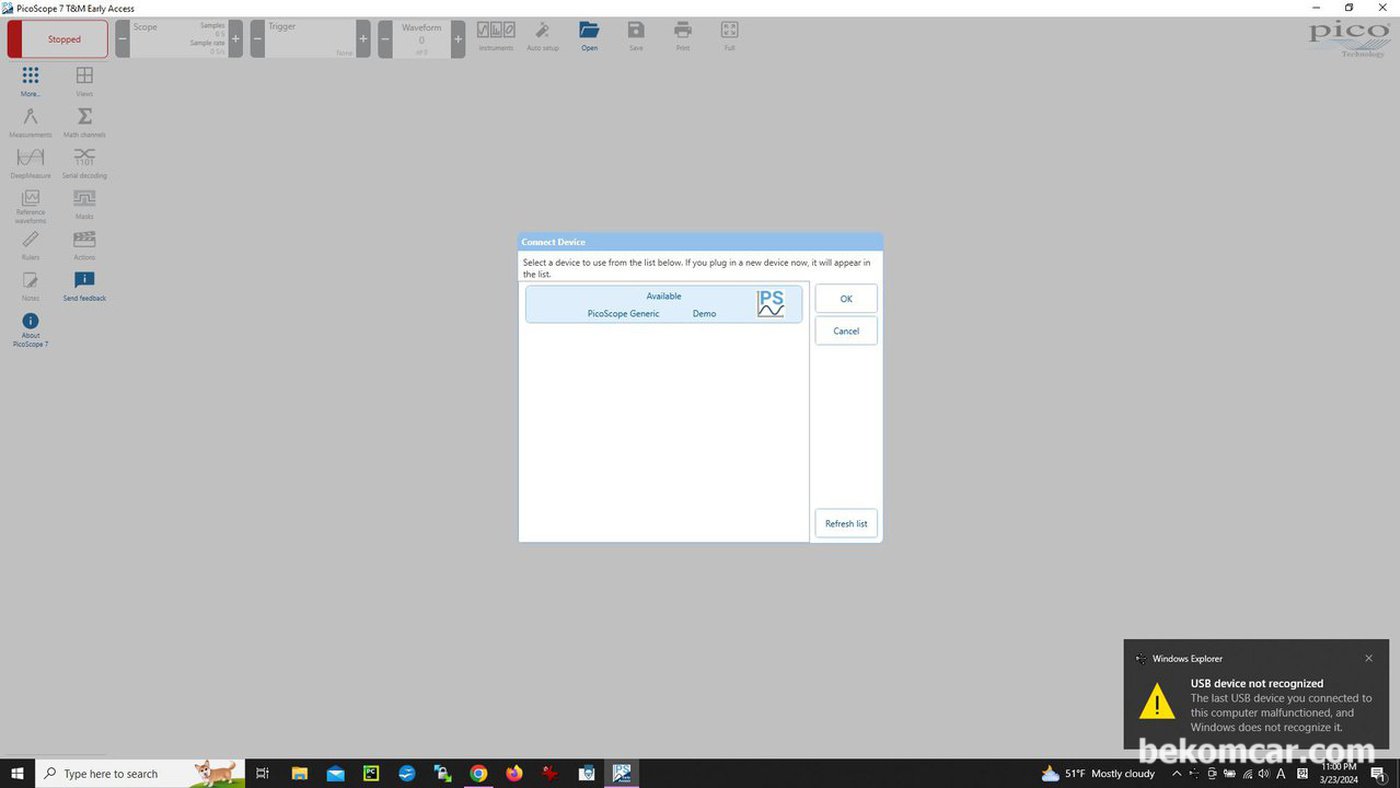

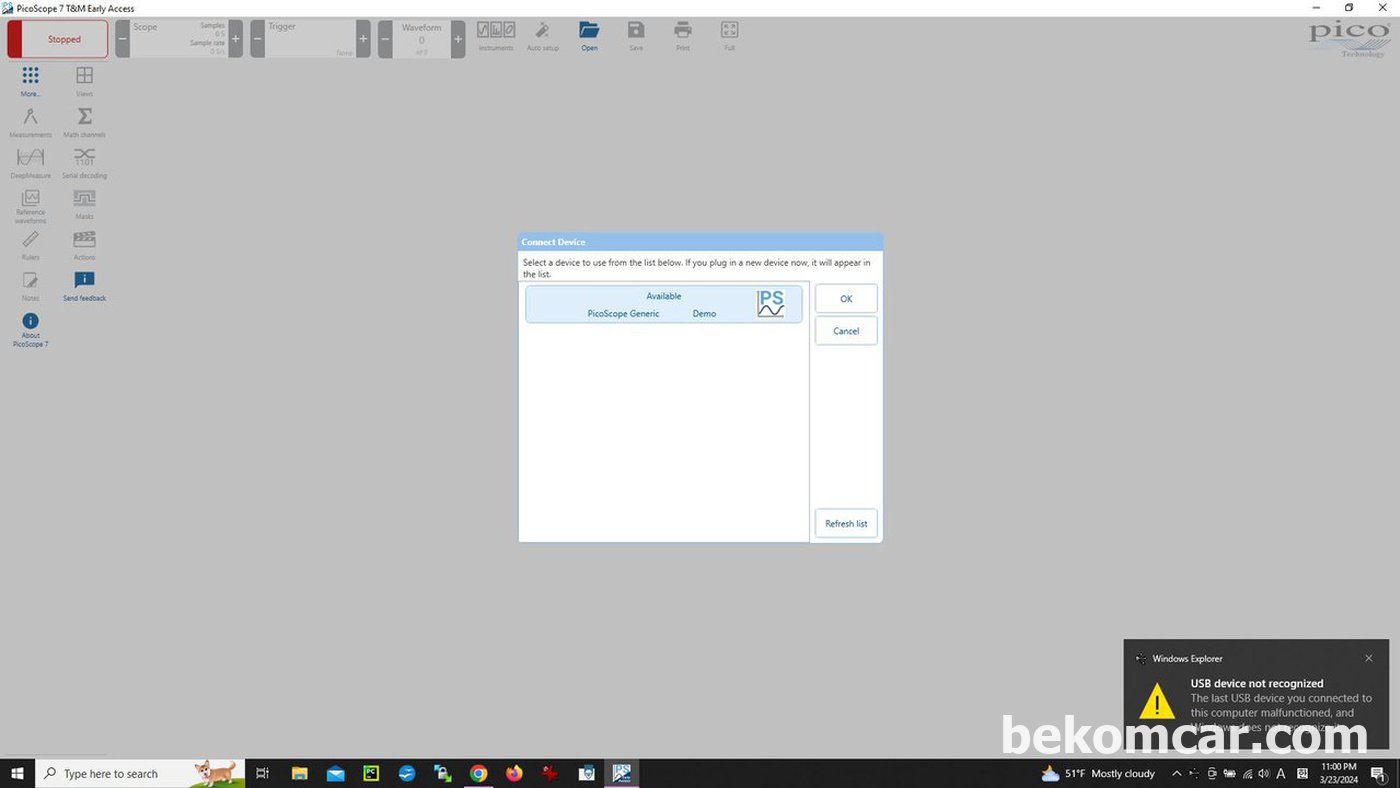

![USB Device Not Recognized Error screenshot, Windows10|bekomcar.com](/media/cache/44/18/watermarked/5ecccc9039ba186205519b03ebbc1357896b6e3b.jpg)
USB Device Not Recognized Error screenshot, Windows10

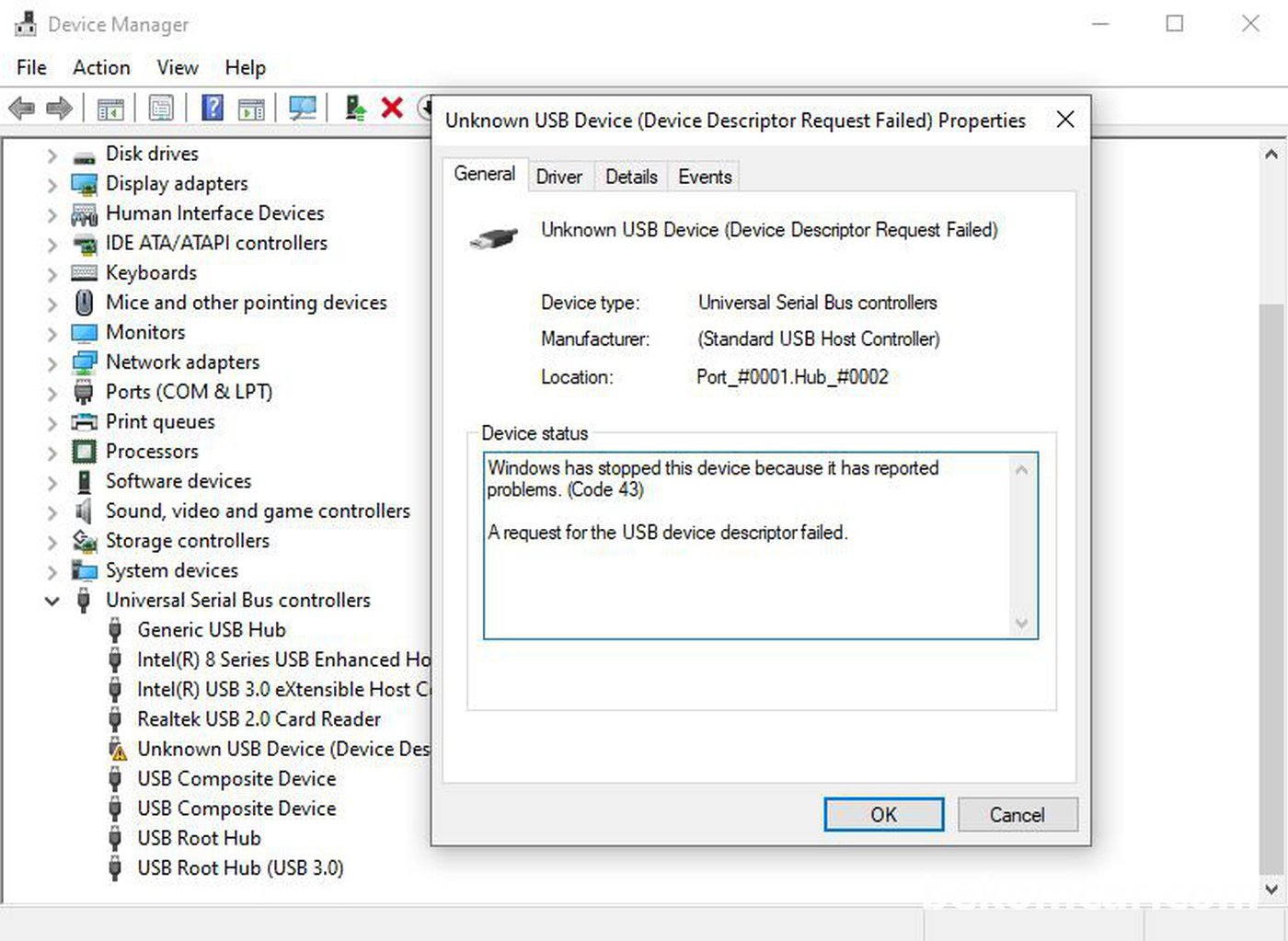

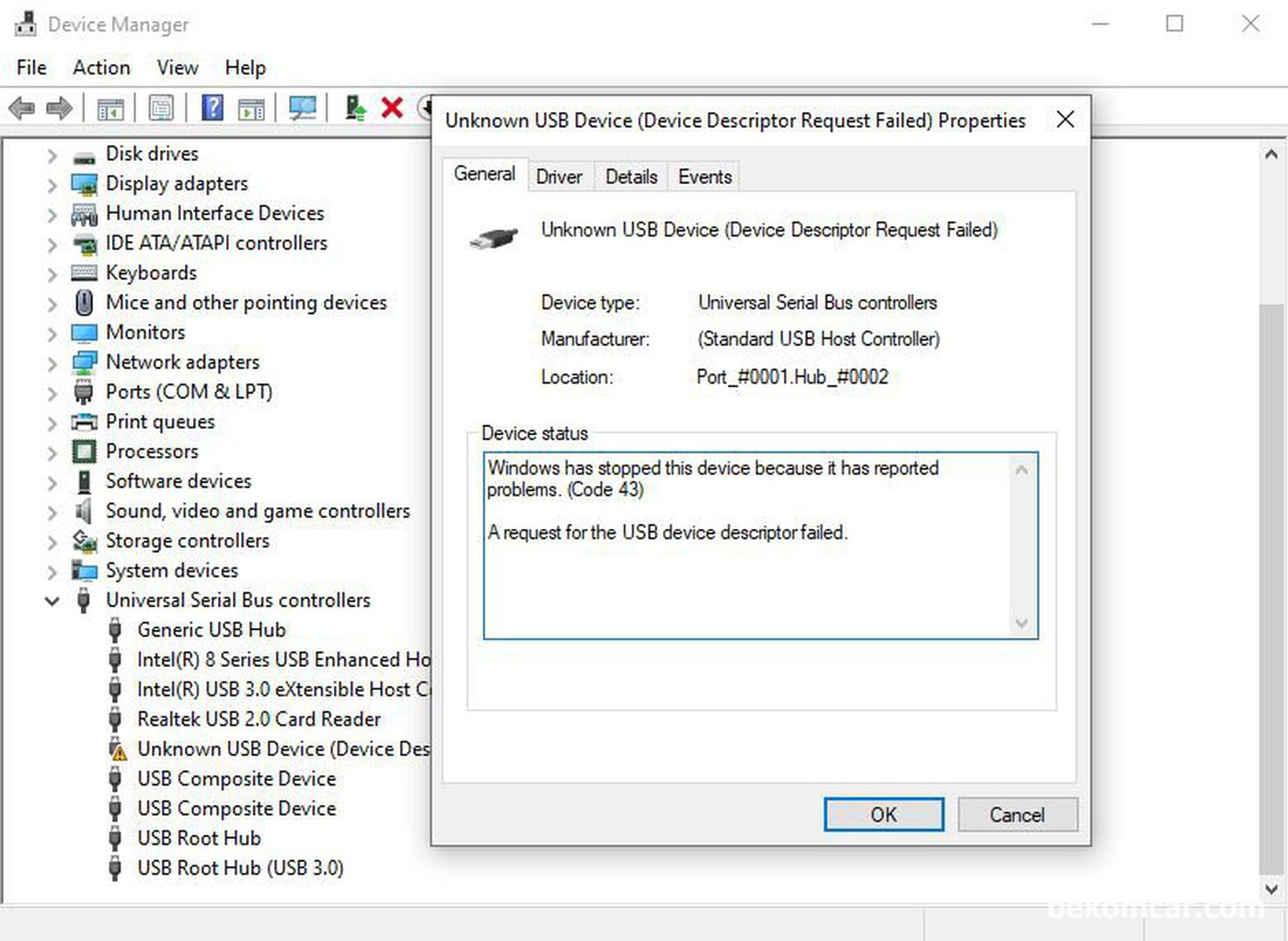

![설치가 잘 되었다가 이렇게 인식이 되지 않는다. Somehow after the very initial installation of 7 Early Access, the device IS recognized but then from the second run of the Pico, the device then is NOT recognized. Just the last thing expected.|bekomcar.com](/media/cache/45/d0/watermarked/81dbb17229802cf58018e8a771f9a1bdf47ce711.jpg)
설치가 잘 되었다가 이렇게 인식이 되지 않는다. Somehow after the very initial installation of 7 Early Access, the device IS recognized but then from the second run of the Pico, the device then is NOT recognized. Just the last thing expected.

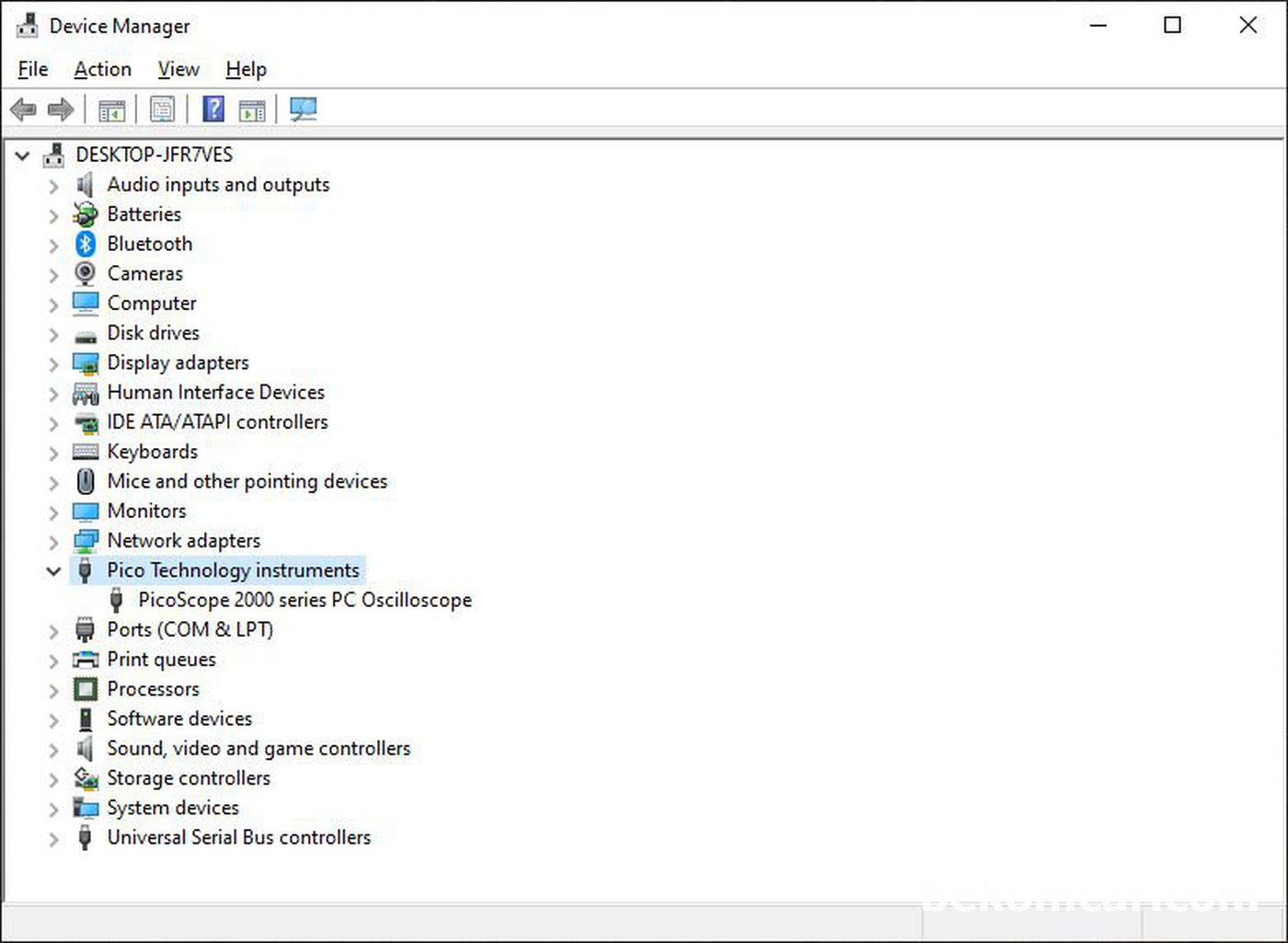

![Device Manager, PicoScope_7_TandM_Early_Access_7.1.24.18443 installed ok|bekomcar.com](/media/cache/83/71/watermarked/c9dd05cee060a0732bfad96e3b30533df33732df.jpg)
Device Manager, PicoScope_7_TandM_Early_Access_7.1.24.18443 installed ok
![PicoScope 6 does not recognize my device. Device Manager에서 설치상태를 점검하고 필요한 드라이버등을 설치해준다. FAQ 참조사항. PicoScope 6 does not recognize my device|bekomcar.com](/media/cache/45/b4/watermarked/d3ad91de2c57ba389757b75409695ab713309896.jpg)

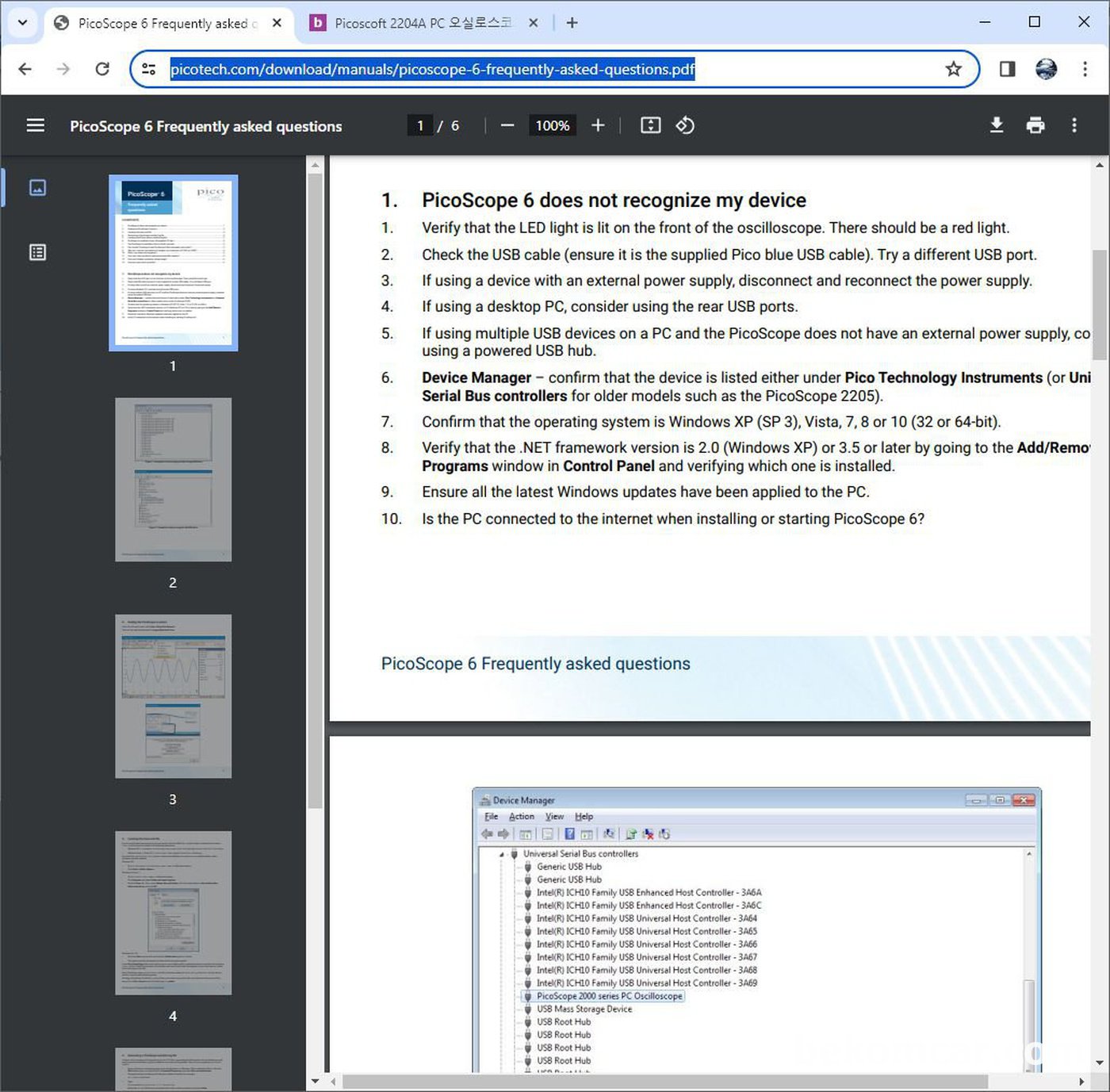

PicoScope 6 does not recognize my device. Device Manager에서 설치상태를 점검하고 필요한 드라이버등을 설치해준다. FAQ 참조사항. PicoScope 6 does not recognize my device
