혼다 오딧세이 3세대 부품리스트

Nov. 15, 2022, 12:14 p.m., Tue, KST. SunJoo Moon

소모품 및 기타 필요한 부품리스트. Drawing courtesy of Honda America, amayama.com, hondpartsnow.com. T (Touring)모델의 경우 일부 부품이 다를수 있다. 항상 각 트림별 품번을 꼭 혼코에서 재확인후에 구매한다.

1 1,489

Product information

Purchase:	Please contact us for the purchase
Manufacturer:	혼다 (Japan)
Specifications:	TBC

(REF#1,198 )

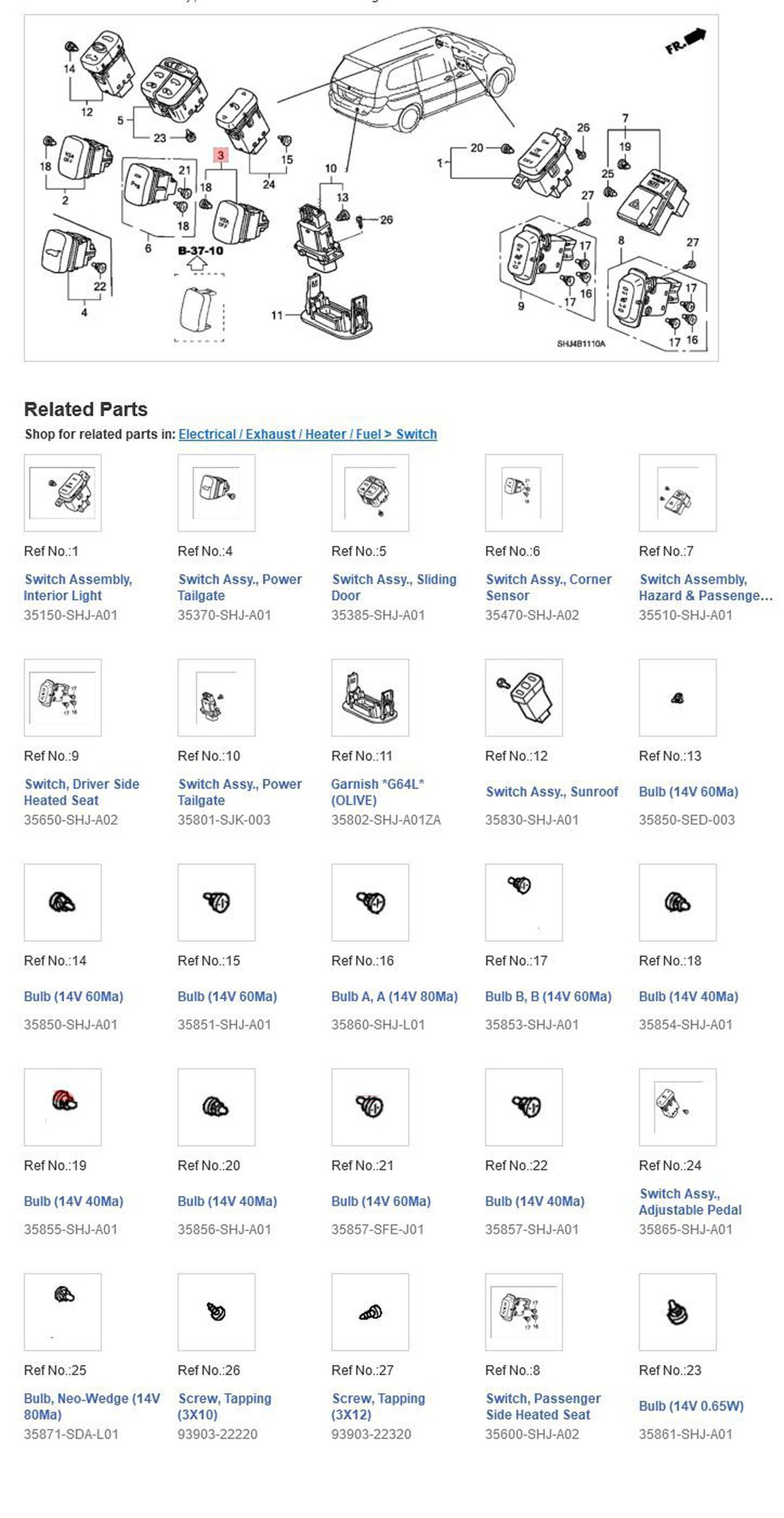

#3. 35300-SHJ-A61. Switch Assy., Vsa Off
#4. 35370-SHJ-A01. Switch Assy., Power Tailgate
#6. 35470-SHJ-A02. Switch Assy., Corner Sensor

(REF#1,197 )

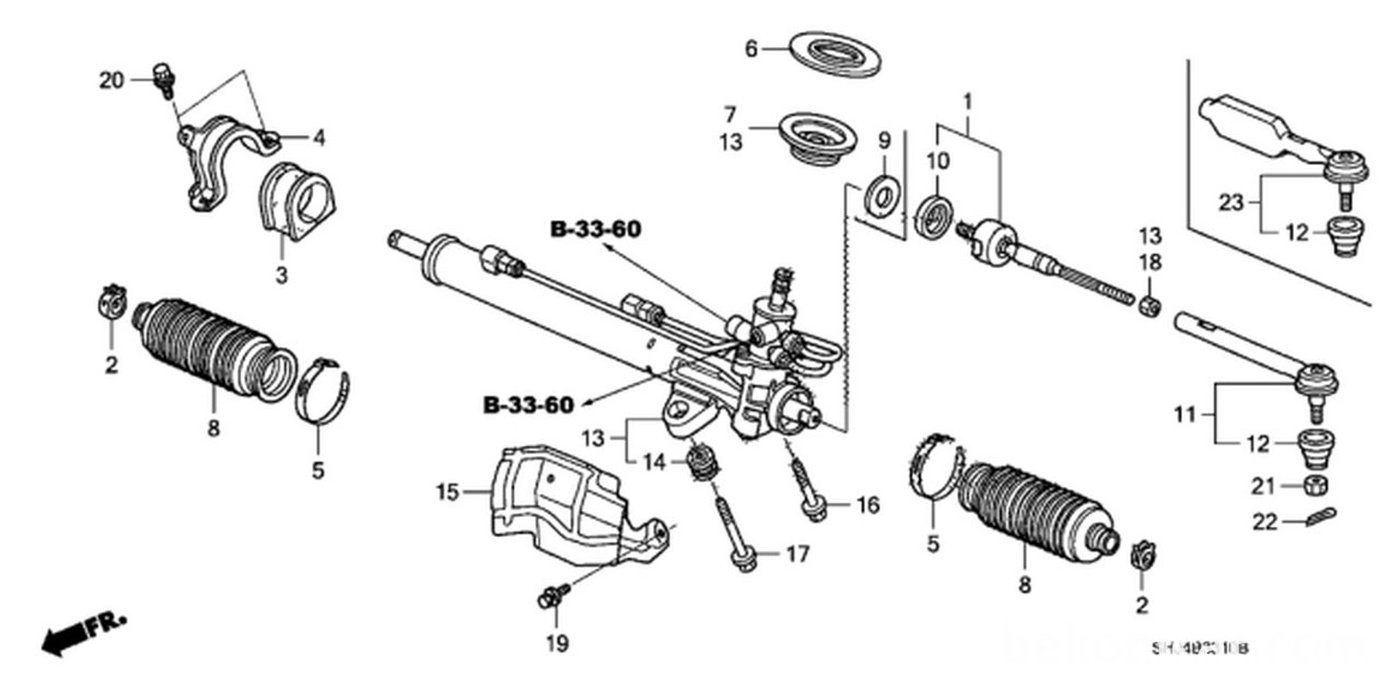

#11. 53540-SHJ-A01. End, Tie Rod (Outer Tie Rod, 비 투어링 트림)
#23. 53540-SHJ-A51. End, Tie Rod (Outer Tie Rod, 투어링 모델)

(REF#1,059 )

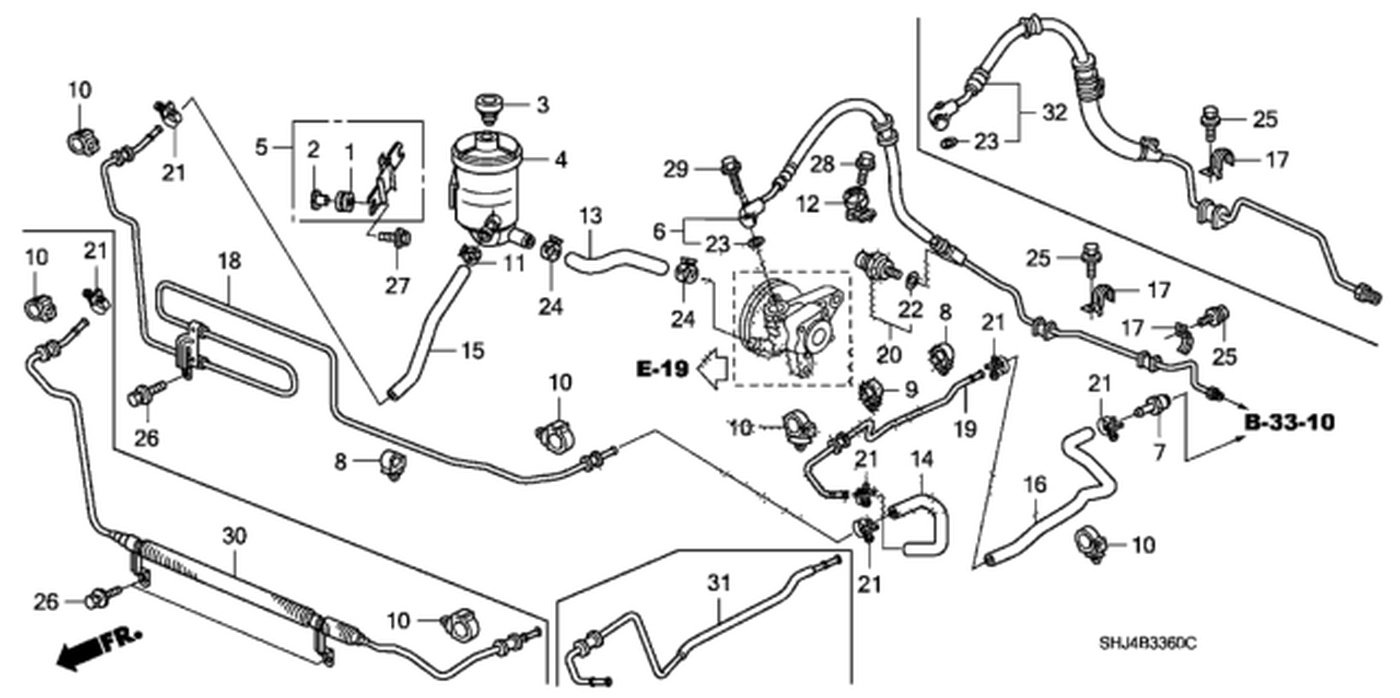

#6. 53713-SHJ-A01. Hose, Power Steering Feed(고압)
#13. 53731-SHJ-A01. Suction Hose (단종되었는지 확인요)
#15. 53733-SHJ-A02. Upper Return Tube
#23. 91370-SV4-000. O-Ring (14.4X1.9) (고압)

(REF#1,056 )

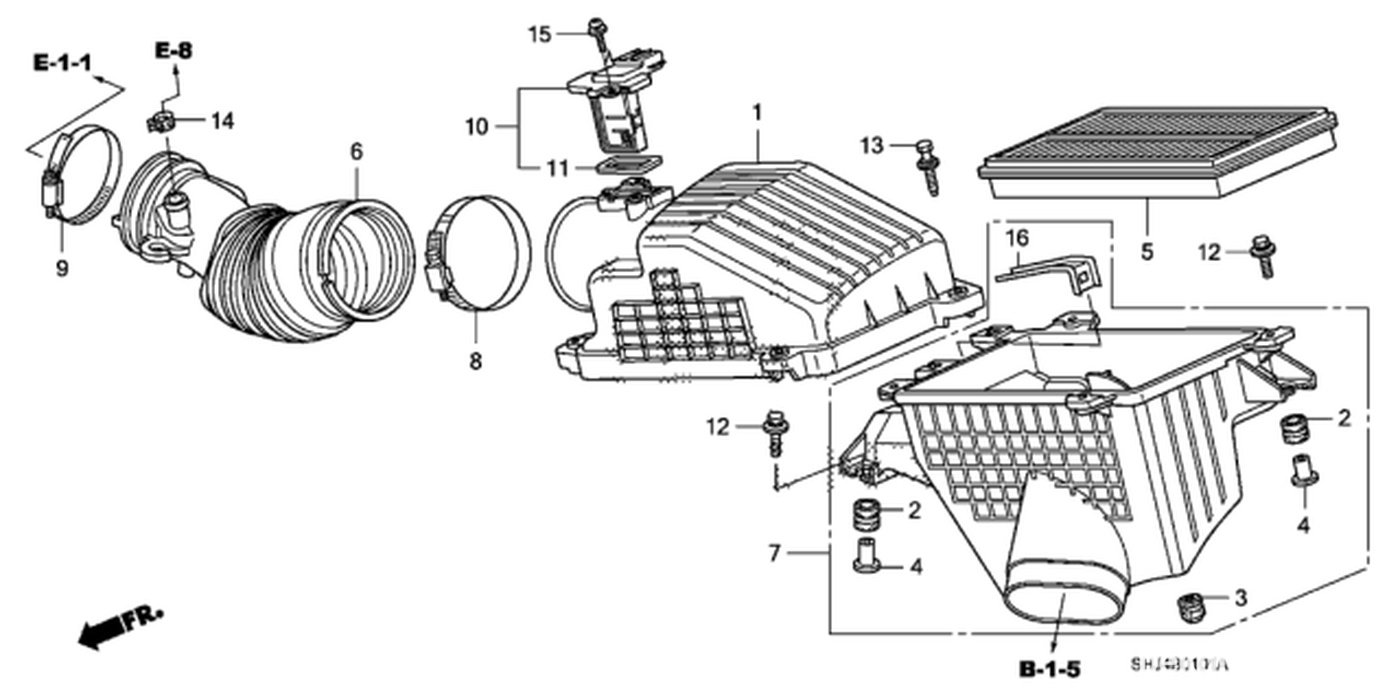

#6. 17228-RGL-A11. Tube, Air Flow
#10. 37980-RNA-A01. Mass Air Flow Sensor

(REF#1,053 )

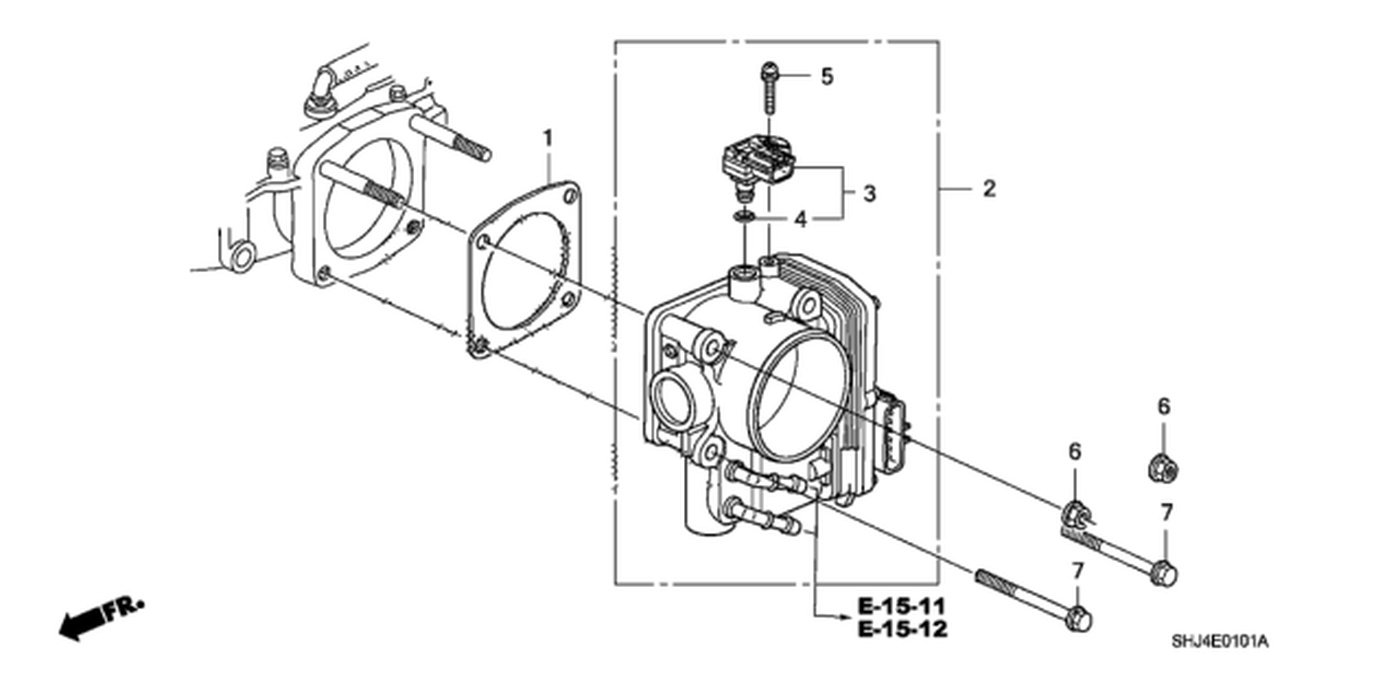

#1. 16176-RCA-A02. Gasket, Throttle Body
#3. 37830-RNA-A01. Sensor Assembly, Map
#4. 37835-PGK-A01. M.A.P. Sensor O-Ring

(REF#1,052 )

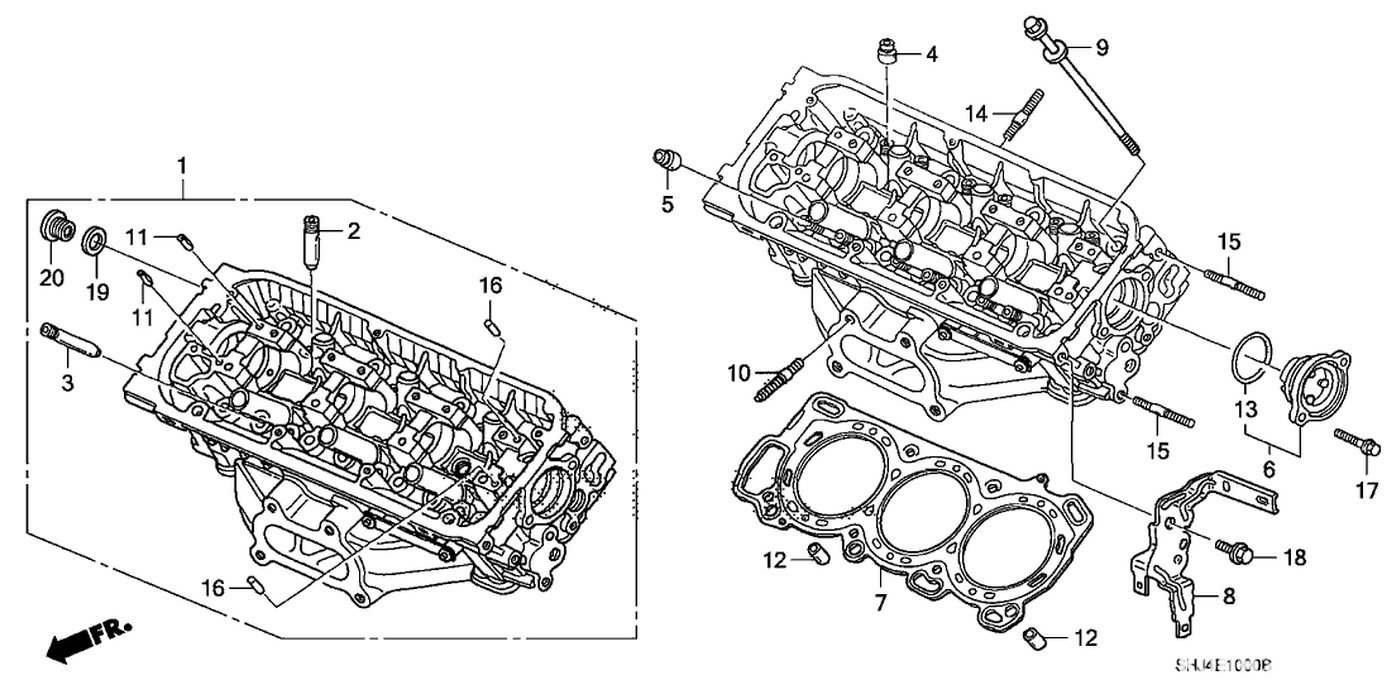

#13. 91301-P8A-A00. O-Ring (48.5X2.4)

(REF#1,051 )

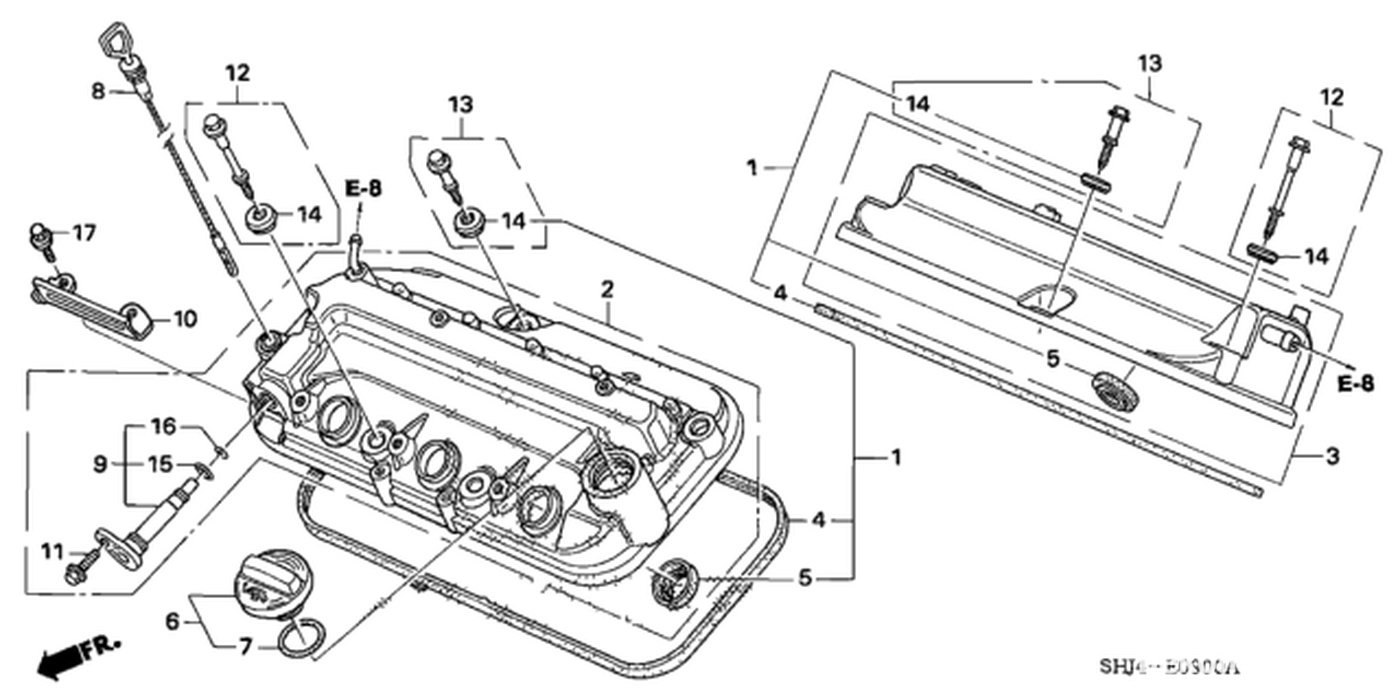

#1. 12030-RYE-A01. Valve Cover Gasket Set
#7. 15613-PC6-000. Filler Cap O-Ring
#9. 17130-RCA-A02. Valve Assembly, Pcv

(REF#1,050 )

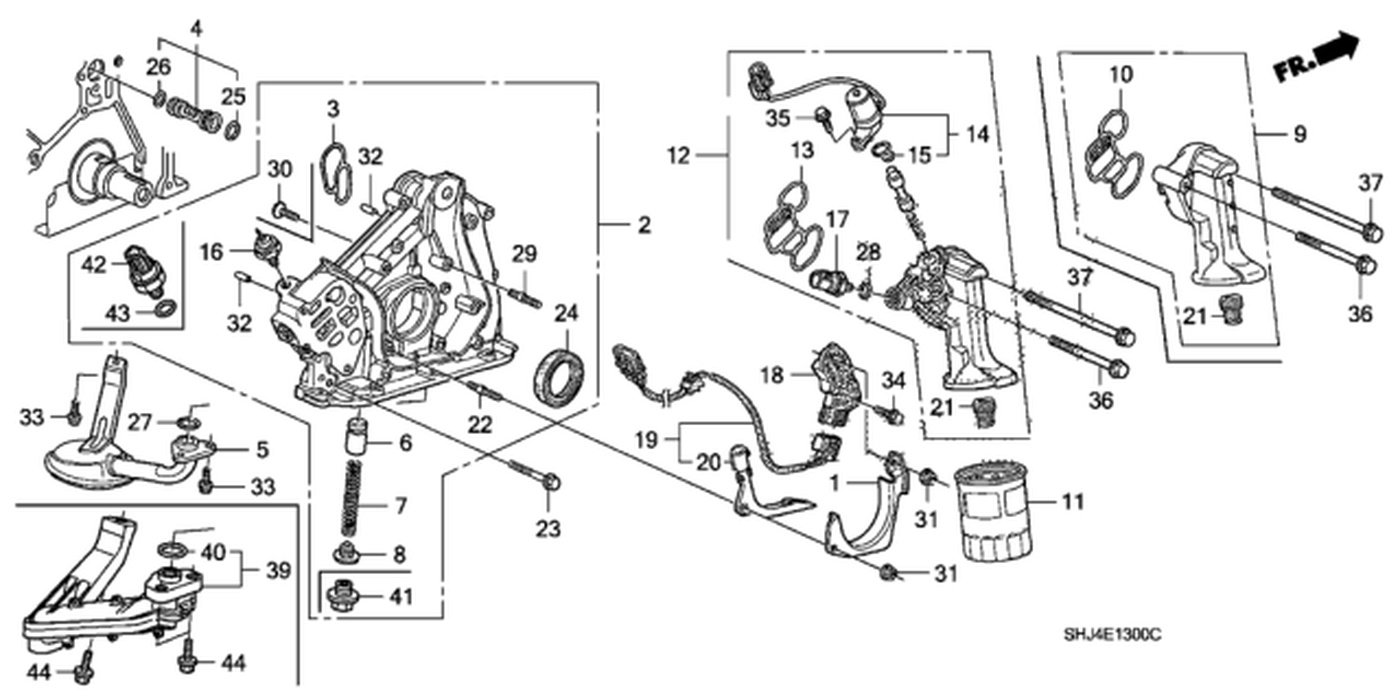

#13. 15825-P8A-A01. Filter Assy., Spool Valve
#15. 36172-P8A-A01. Gasket, Solenoid Base
#24. 91212-R70-A01. Oil Seal (41X56X7) (Arai)
#28. 91319-PR3-003. O-Ring (13X1.5) (Arai)

SunJoo Moon , Create Date: Nov. 15, 2022, 12:14 p.m.
