어코드 8세대, CRV, 엘리먼트 K24Z2 K24Z3 주요 부품리스트

May 3, 2024, 7:39 p.m., Fri, KST. SunJoo Moon

K24Z2 K24Z3 어코드 8세대 참고용 부품리스트 이나, 주문전에 꼭 혼다에 부품번호를 재확인해야한다. 추가로 CRV 엘리먼트등 K24엔진을 사용하는 차량에 공통으로 사용될 수 있다. Drawing Courtesy of Honda Motor, Amayama, Hondapartsnow. K24로 대표되는 어코드 8세대 4기통은 사실상 엔진오일관리만 잘 하고 10만키로에 가스켓종류만 바꾸어주면 50만키로 주행은 흔하다. 다만 6기통의 경우는 누유나 엔진오일소모 및 엔진기계적 고장등 이 있다.

1 586

Product information

어코드 8세대, CRV, 엘리먼트 K24Z2 K24Z3 주요 부품리스트|bekomcar.com
Purchase:
Please contact us for the purchase
Manufacturer:Honda (Japan)
Specifications:TBC
Pros:순정부품을 권장

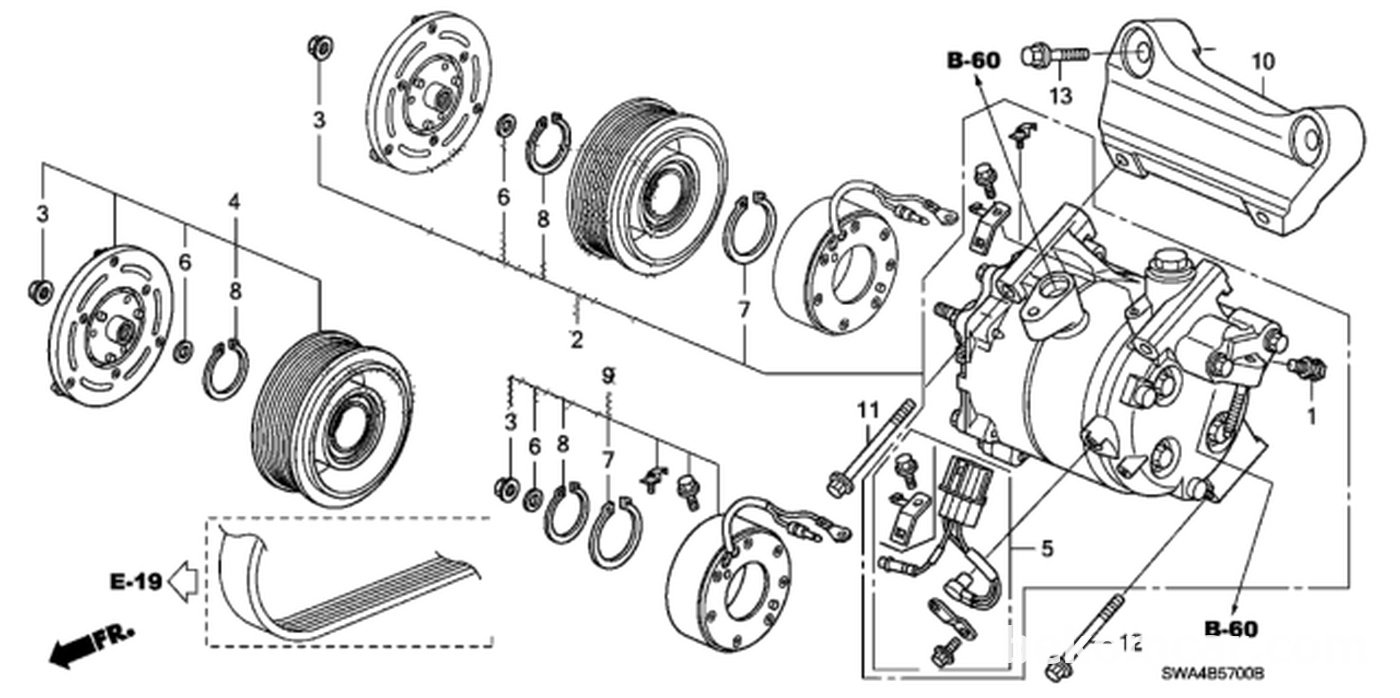

#1, Honda 38801-PHM-004 Valve Sub-Assy., Safety
#4, Honda 38900-RZA-014 Set Compressor Clutch
#5, Honda 38908-RWC-A02 Protector Set, Thermal
#9, Honda 38924-RWC-A01 Coil Set, Field|bekomcar.com
(REF#4,038 )

#1, Honda 38801-PHM-004 Valve Sub-Assy., Safety
#4, Honda 38900-RZA-014 Set Compressor Clutch
#5, Honda 38908-RWC-A02 Protector Set, Thermal
#9, Honda 38924-RWC-A01 Coil Set, Field

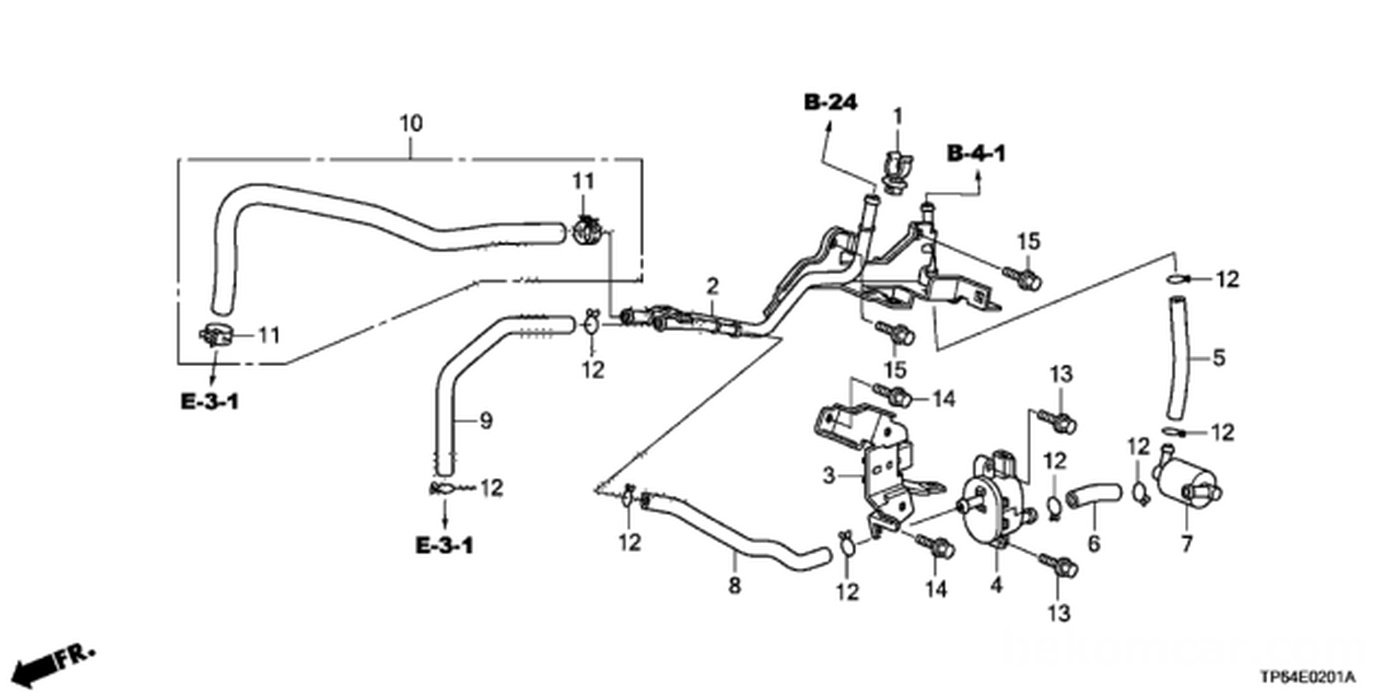

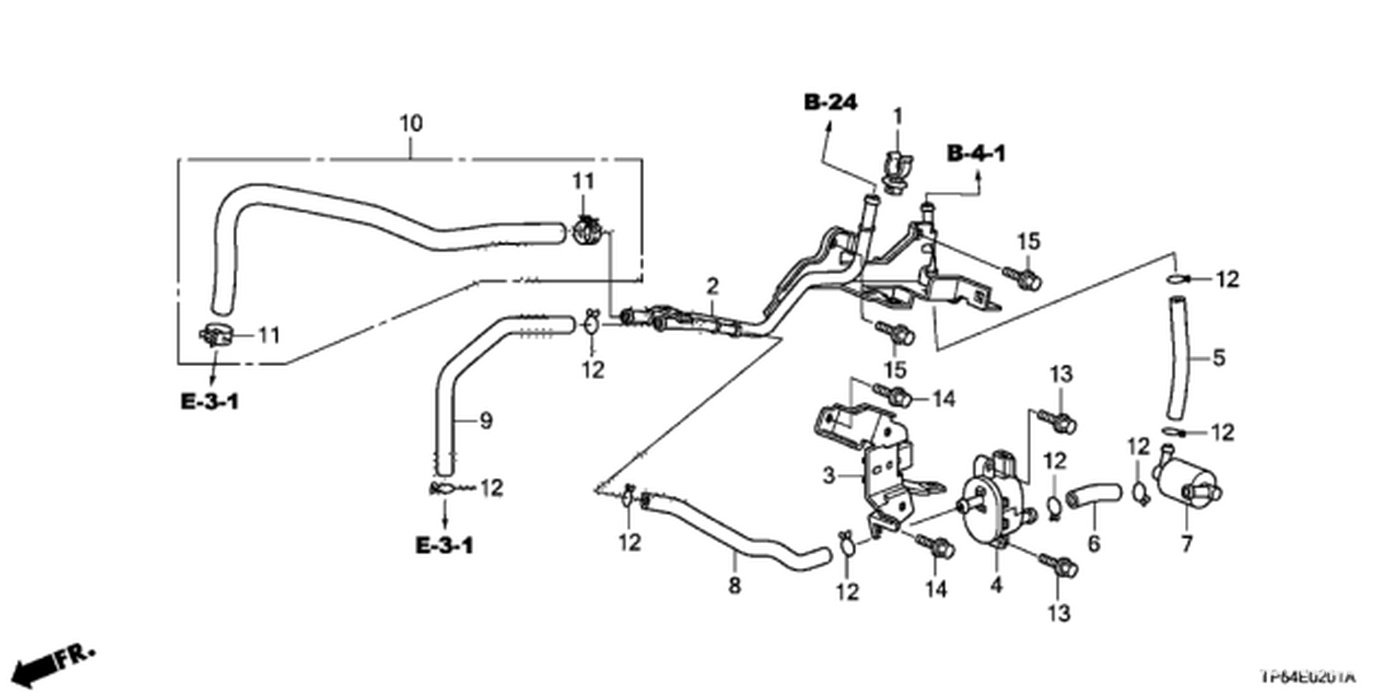

#4, 36162-RRA-A01 Valve Assembly, Purge Control Solenoid (PCSV)|bekomcar.com
(REF#4,001 )

#4, 36162-RRA-A01 Valve Assembly, Purge Control Solenoid (PCSV)

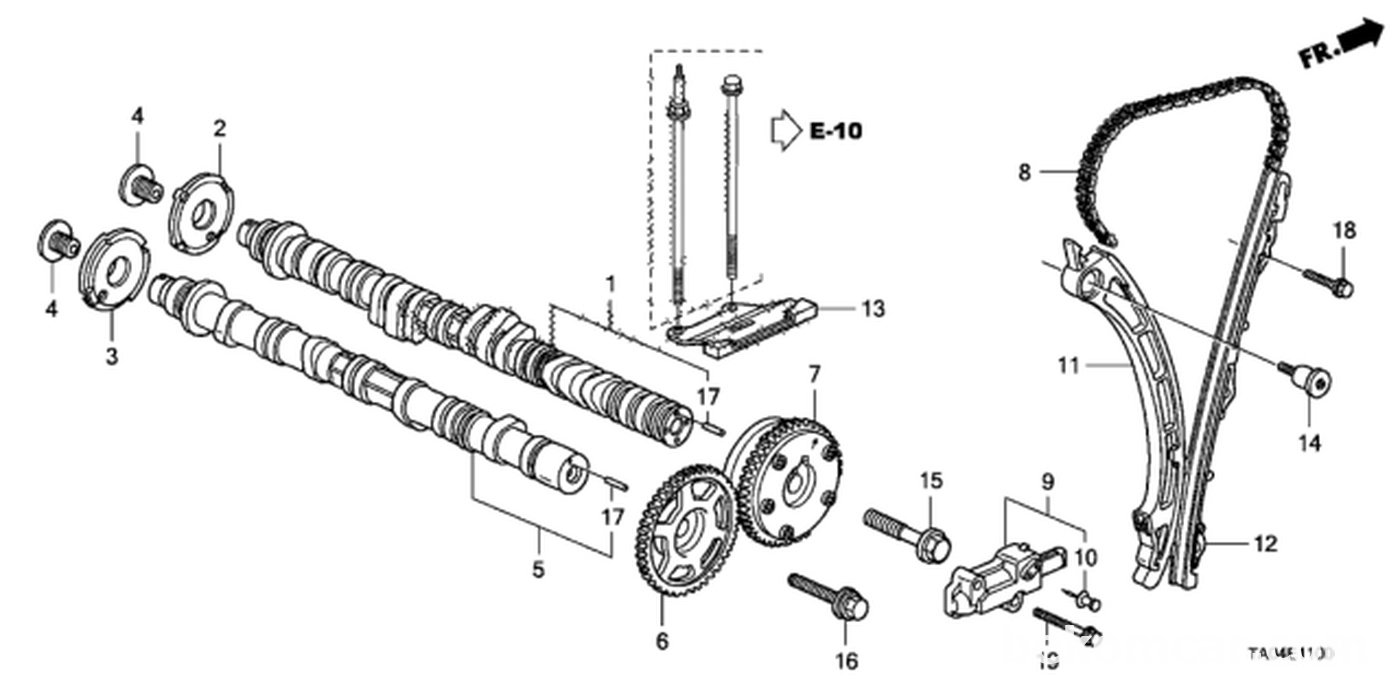

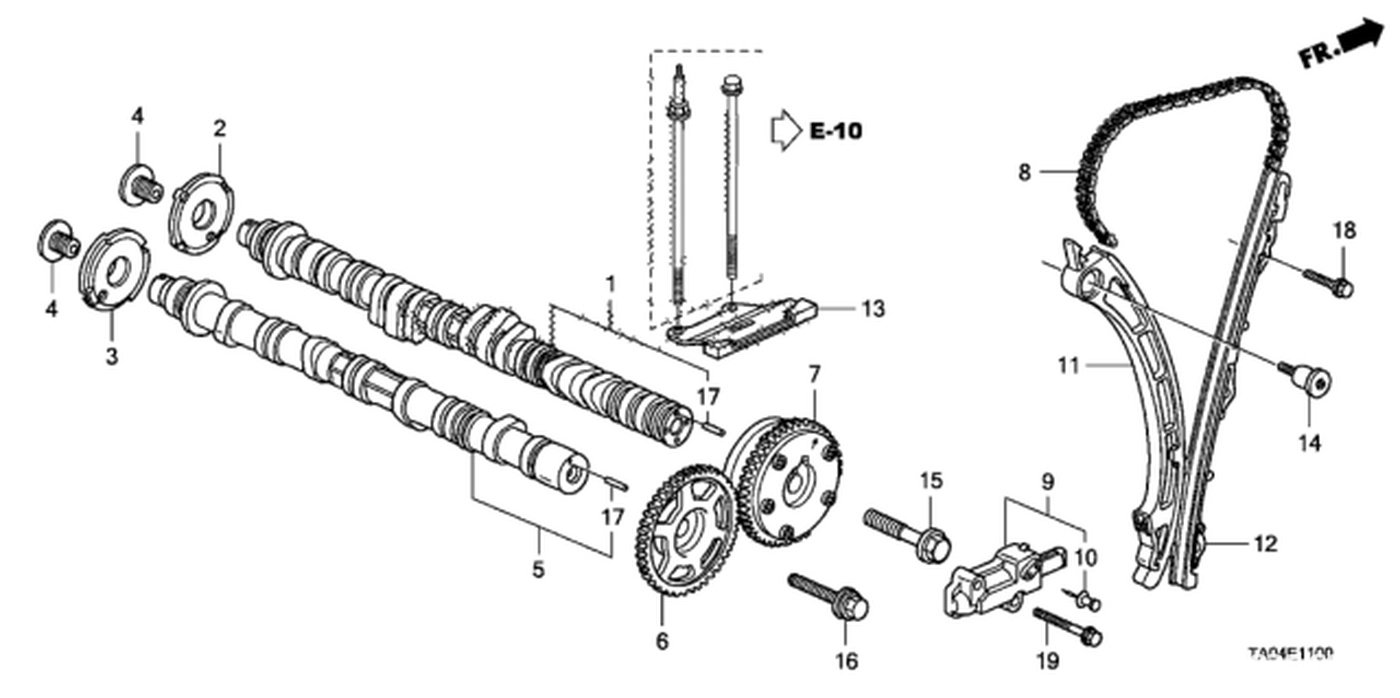

#7, 14310-R5A-305 Actuator, VTC (46T)|bekomcar.com
(REF#3,779 )

#7, 14310-R5A-305 Actuator, VTC (46T)

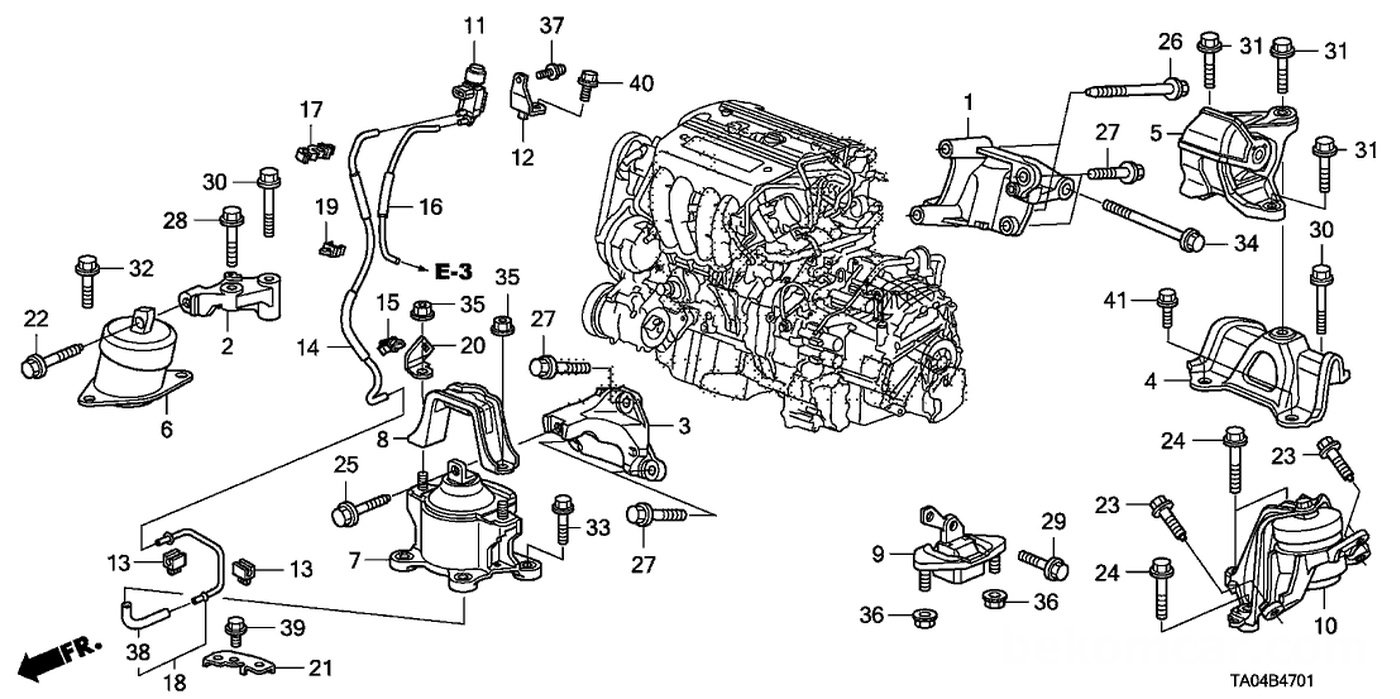

#6, 50820-TA0-A01 Rubber Assy., Engine Side Mounting
#7, 50830-TA0-A02 Rubber Assy., FR. Engine Mounting
#9, 50850-TA0-A02 Rubber, Transmission Mounting Insulator (Lower)|bekomcar.com
(REF#3,700 )

#6, 50820-TA0-A01 Rubber Assy., Engine Side Mounting
#7, 50830-TA0-A02 Rubber Assy., FR. Engine Mounting
#9, 50850-TA0-A02 Rubber, Transmission Mounting Insulator (Lower)

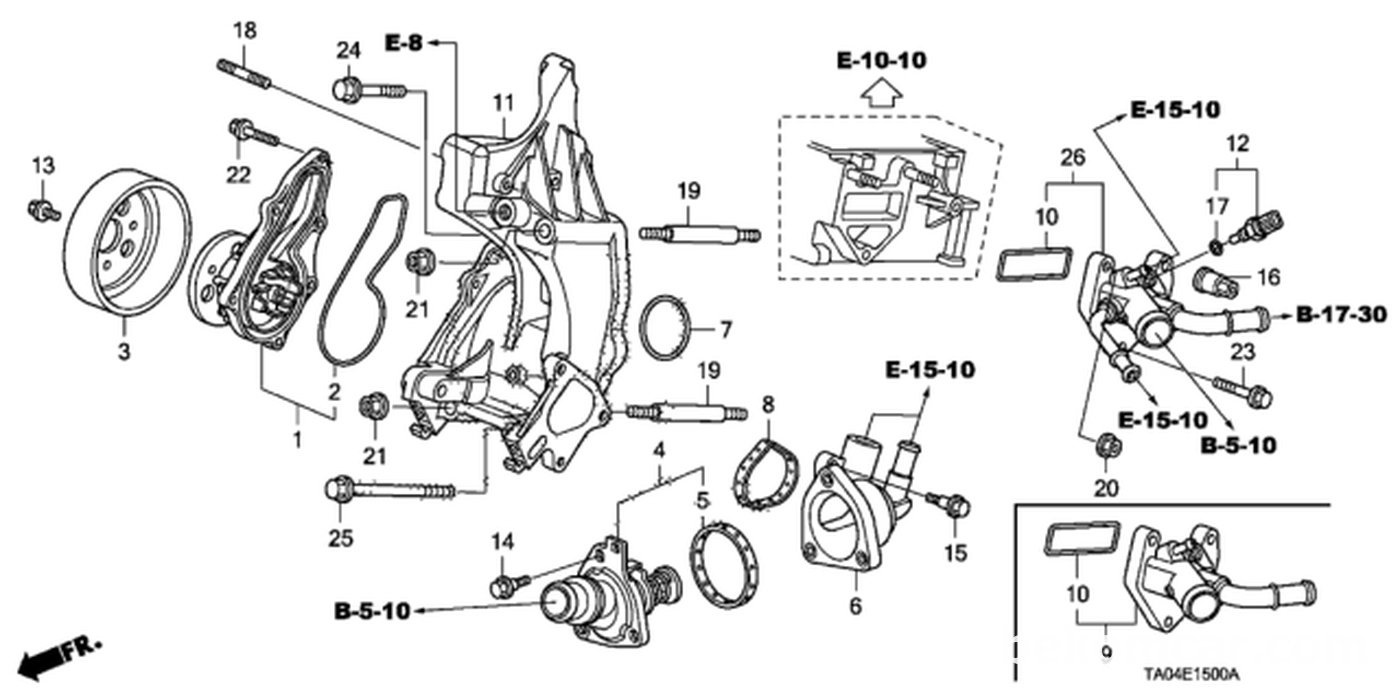

#1, 19200-R40-A01 Water Pump
#4, 19301-R40-A01 Thermostat Assembly (Fuji Seiko)
#5, 19305-PNA-003 Seal, Thermostat Cover (Nippon Thermostat)|bekomcar.com
(REF#3,699 )

#1, 19200-R40-A01 Water Pump
#4, 19301-R40-A01 Thermostat Assembly (Fuji Seiko)
#5, 19305-PNA-003 Seal, Thermostat Cover (Nippon Thermostat)

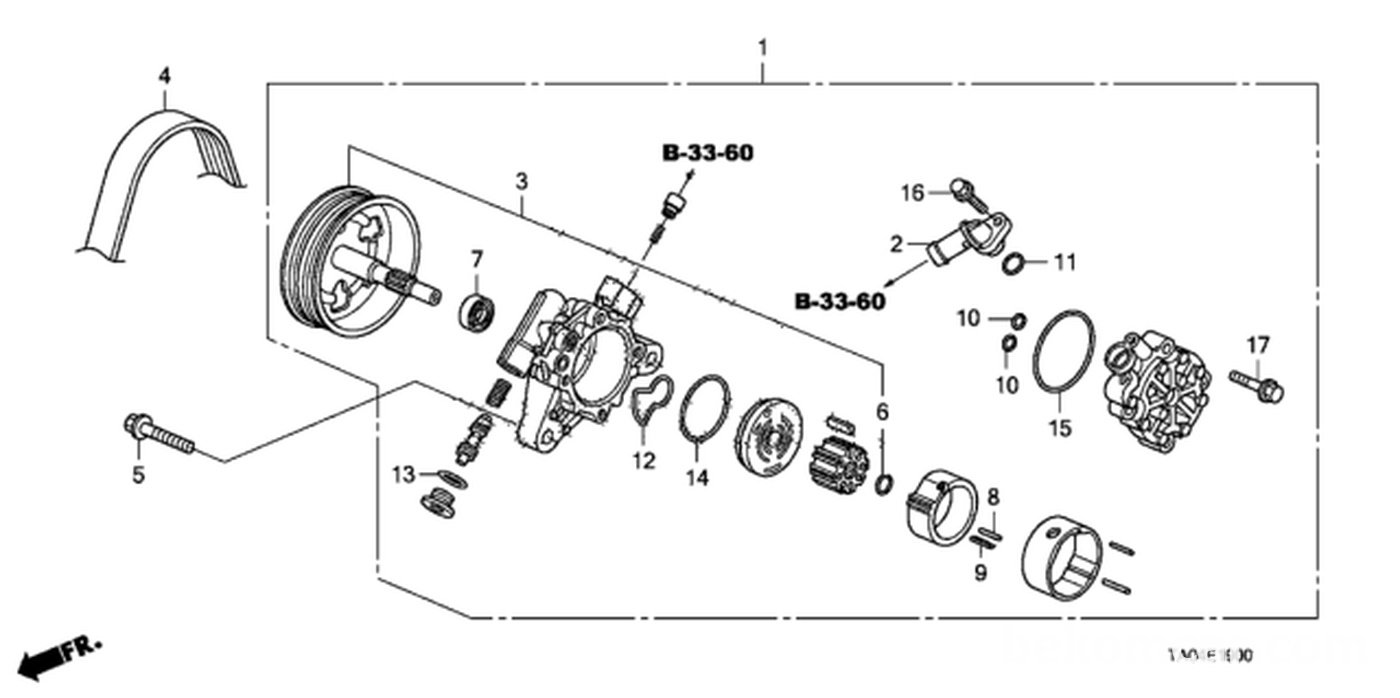

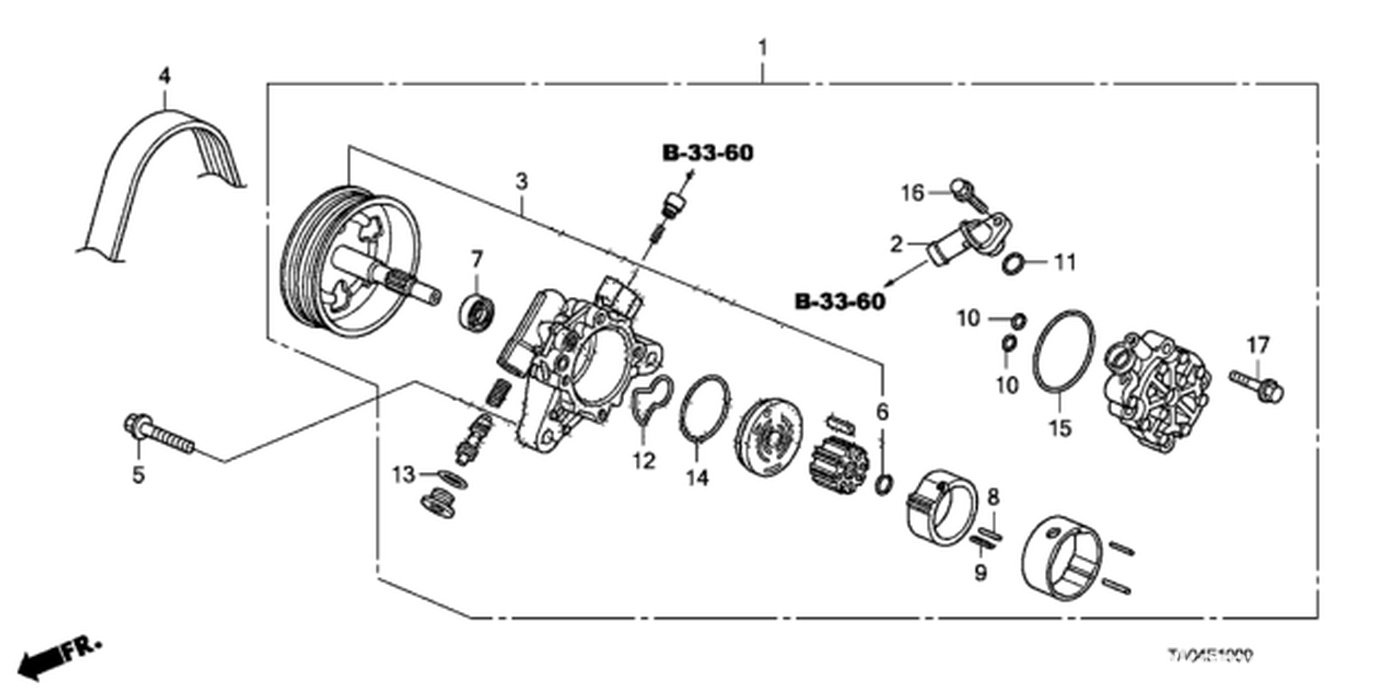

#1, 56100-R40-P05 Pump Assembly, Power Steering (L4)
#4, 56992-R40-A01 Belt, Power Steering Pump (Bando)|bekomcar.com
(REF#3,698 )

#1, 56100-R40-P05 Pump Assembly, Power Steering (L4)
#4, 56992-R40-A01 Belt, Power Steering Pump (Bando)

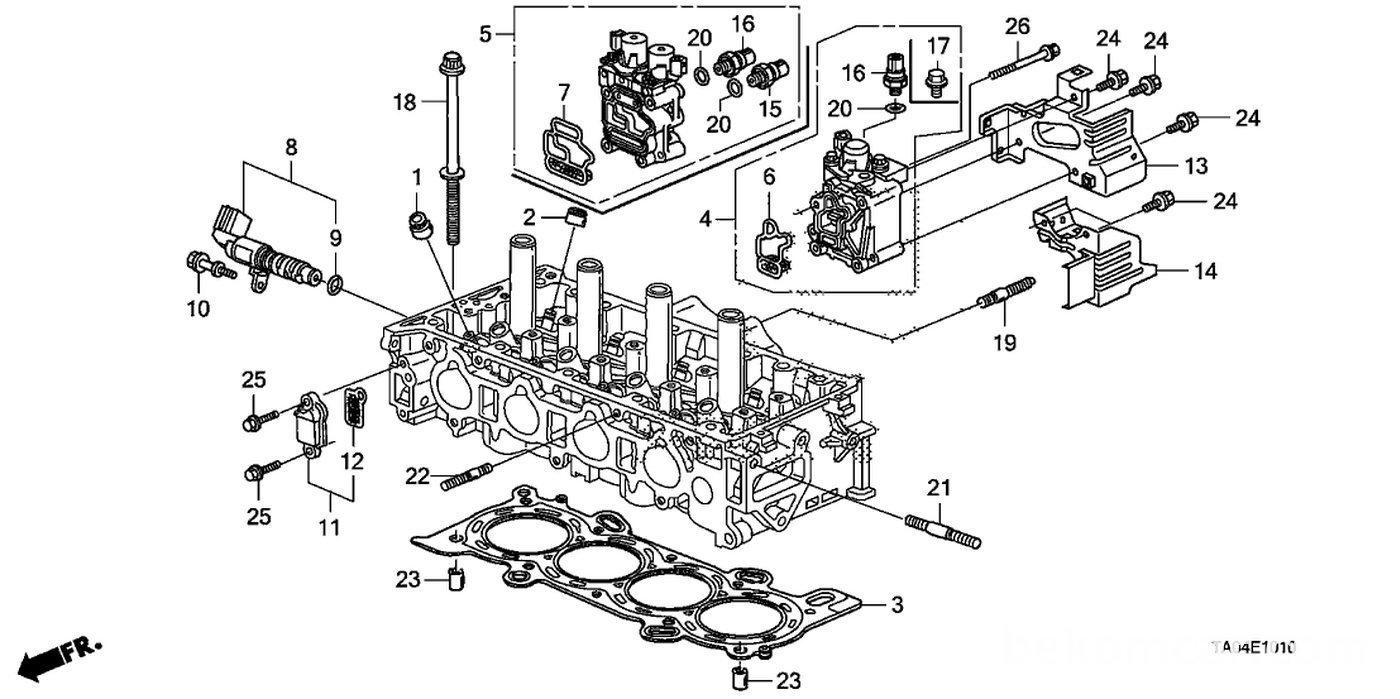

#6, 15815-R40-A01 Filter Assy., Spool Valve
#8, 15830-R5A-A01 Valve Assembly Vtc Oil
#9, 15832-RAA-A01 Oil Seal, Control Valve
#12, 15845-RAA-A01 Filter Assy., Vtc
#20, 91319-PAA-A01 O-Ring (13X1.5)|bekomcar.com
(REF#3,697 )

#6, 15815-R40-A01 Filter Assy., Spool Valve
#8, 15830-R5A-A01 Valve Assembly Vtc Oil
#9, 15832-RAA-A01 Oil Seal, Control Valve
#12, 15845-RAA-A01 Filter Assy., Vtc
#20, 91319-PAA-A01 O-Ring (13X1.5)

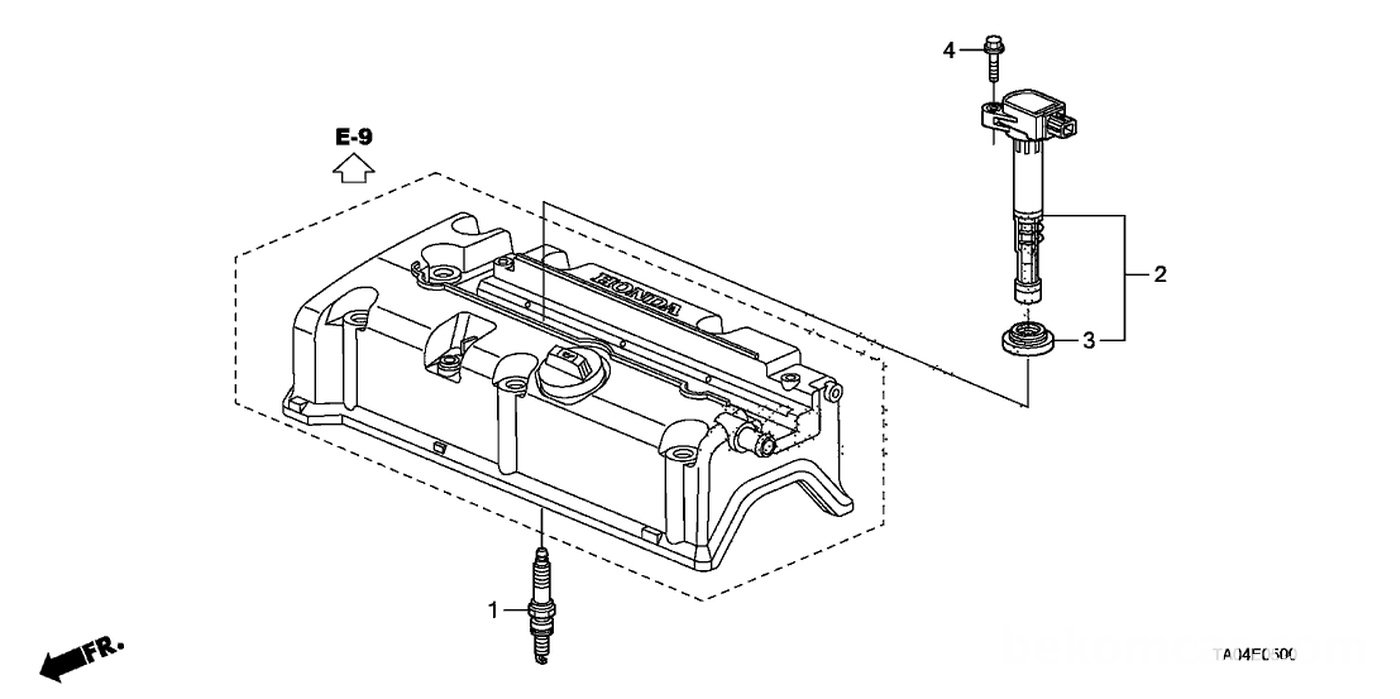

#1, 12290-R40-A01 Spark Plug (Ilzkr7B-11S) (Ngk)
#2, 30520-R40-007 Coil, Plug Hole|bekomcar.com
(REF#3,696 )

#1, 12290-R40-A01 Spark Plug (Ilzkr7B-11S) (Ngk)
#2, 30520-R40-007 Coil, Plug Hole

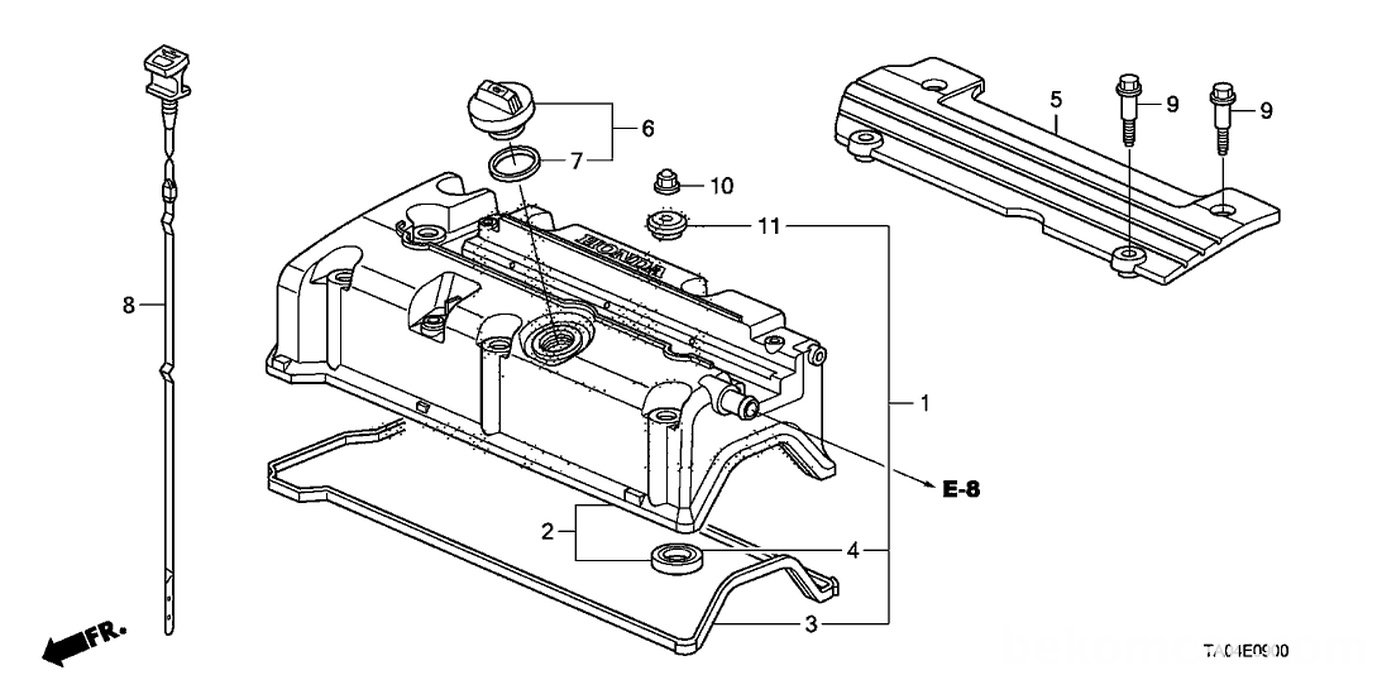

#1, 12030-R44-A00 Gasket Set, Head Cover
#7, 15613-PC6-000 Gasket, Oil Filler|bekomcar.com
(REF#3,694 )

#1, 12030-R44-A00 Gasket Set, Head Cover
#7, 15613-PC6-000 Gasket, Oil Filler

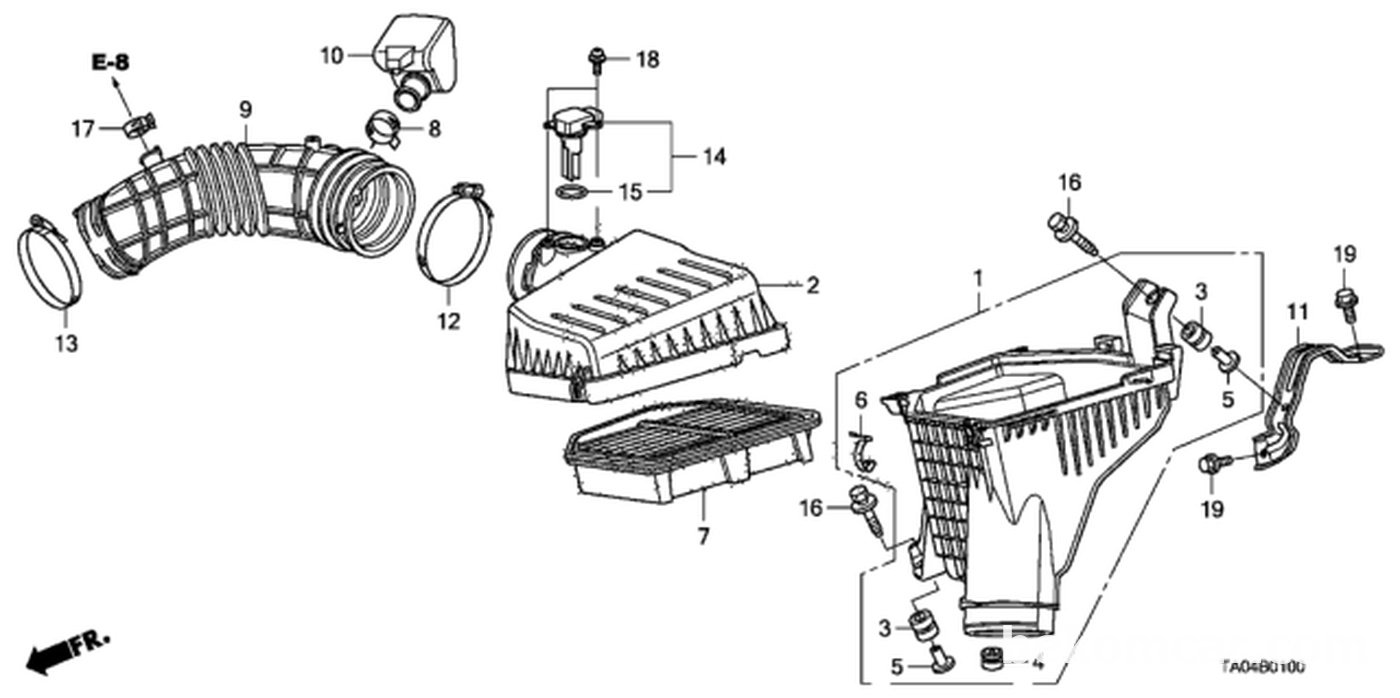

#9, 17228-R42-A00 Tube, Air Flow
#14, 37980-R11-A02 Meter Assembly, Air Flow
(#9번은 J35Z2 K24Z3 에 호환됨)|bekomcar.com
(REF#3,693 )

#9, 17228-R42-A00 Tube, Air Flow
#14, 37980-R11-A02 Meter Assembly, Air Flow
(#9번은 J35Z2 K24Z3 에 호환됨)

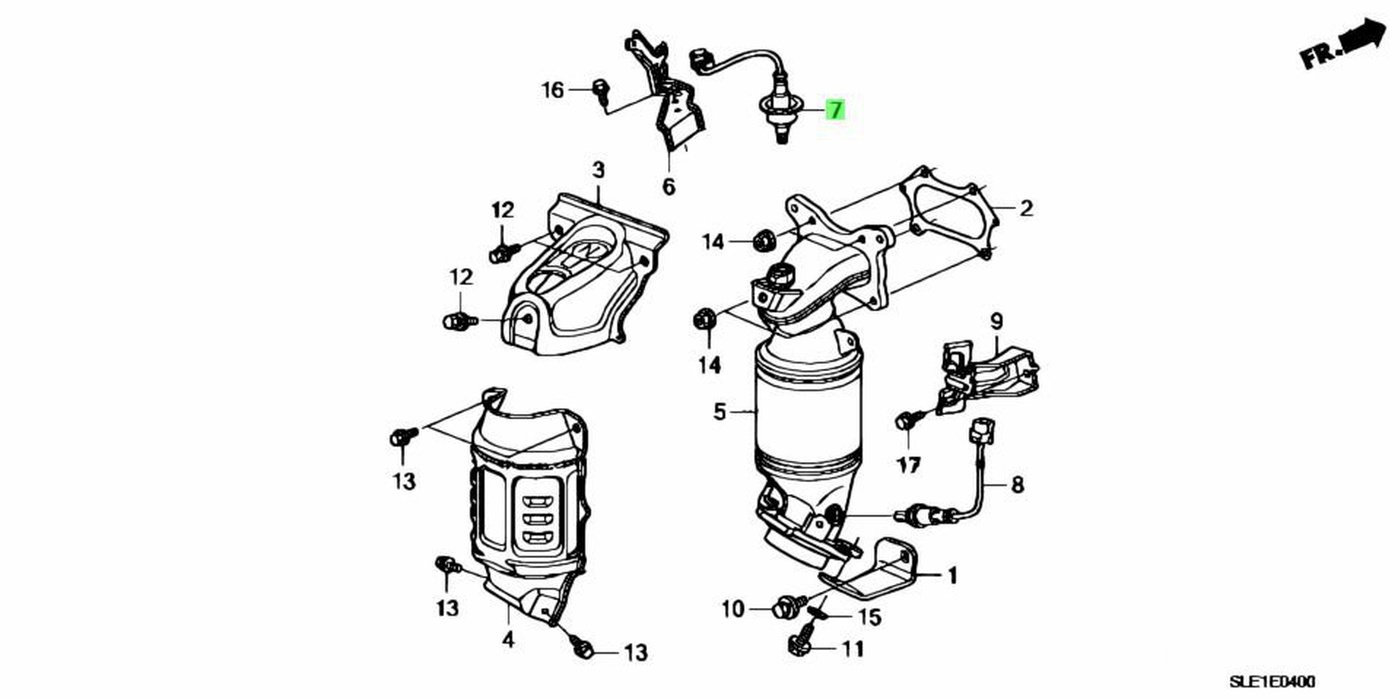

#7, 36531-R40-A01 Sensor, Air Fuel Ratio
#8, 36532-R40-A01 Sensor, Oxygen
(Accord, Accord Tourer, Odyssey
J35Z2 K24Z2 K24Z3 N22B1 N22B2 R20A3 호환됨)|bekomcar.com
(REF#3,692 )

#7, 36531-R40-A01 Sensor, Air Fuel Ratio
#8, 36532-R40-A01 Sensor, Oxygen
(Accord, Accord Tourer, Odyssey
J35Z2 K24Z2 K24Z3 N22B1 N22B2 R20A3 호환됨)


Need to login to leave the comments
May 27, 2024, 11:31 a.m. - SunJoo Moon moderator
부품은 꼭 순정 혹 OEM사용을 권장한다. 결국 돈 아끼는 지름길이고 차량의 자연수명을 연장하는데 믿을만한 부품은 큰 역할을 한다.
|
