VTC 스트레이너등 CRV 2 & 3세대 K24Z1엔진 부품

Feb. 24, 2023, 10:20 p.m., Fri, KST. SunJoo Moon

VTC 스트레이너등 CRV 2세대 및 3세대 부품리스트이다. 사실 K24Z1엔진이면 다 적용된다. K24Z3 (어코드) 는 다른 경우가 많으니 꼭 본인차량으로 혼코에서 먼저 부품번호를 재 확인한다. Drawings: Honda Motor, Hondapartsnow, amayama.com

1 1,200

Product information

VTC 스트레이너등 CRV 2 & 3세대 K24Z1엔진 부품|bekomcar.com

Purchase:	Please contact us for the purchase
Manufacturer:	TBC (Japan)
Specifications:	TBC

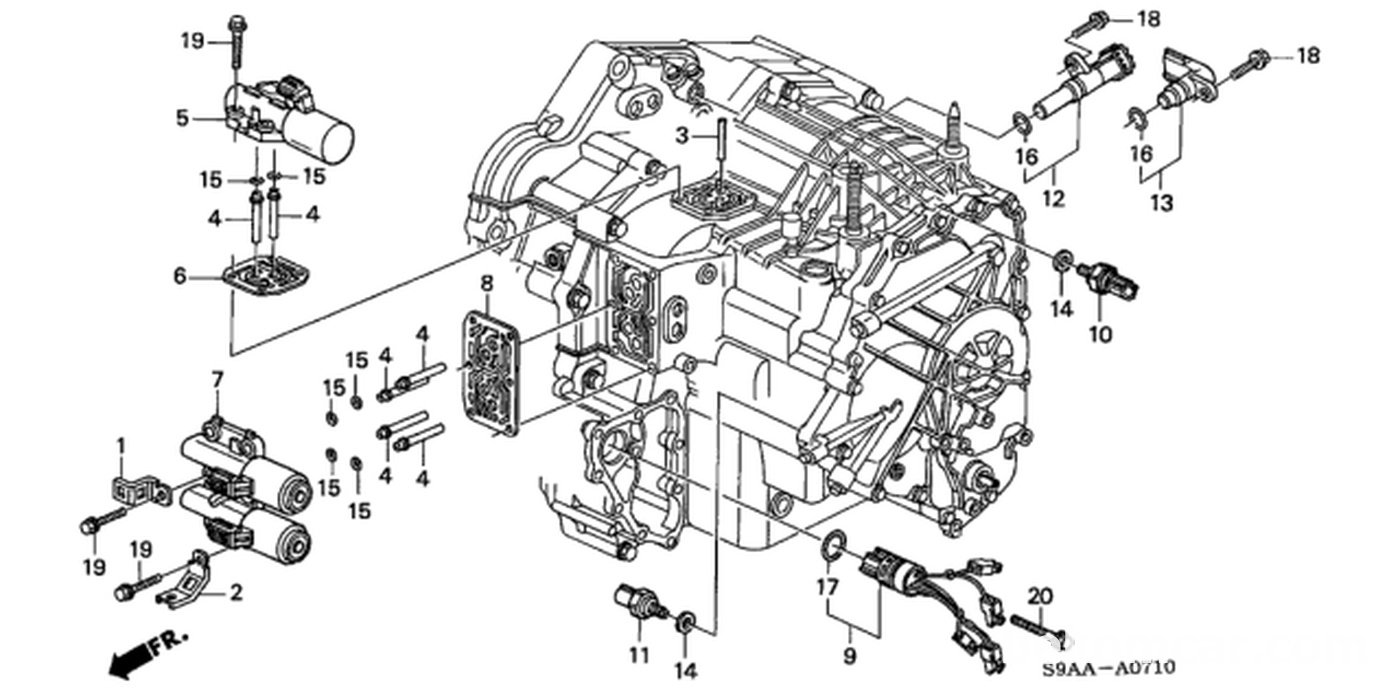

(REF#3,648 )

#5, 28250-RPC-003 Solenoid Assy. A, Linear
#6, 28252-PRP-000 Gasket A, Linear Solenoid
#7, 28260-PRP-014 Solenoid Assy. B, Linear
#8, 28262-PRP-000 Gasket B, Linear Solenoid
#10, 28600-RCL-004 Switch Assembly, At Oil Pressure (Saginomiya)
#11, 28810-PPW-013 Pick-Up Assembly (Toyo)
#12, 28810-PPW-013 Pick-Up Assembly (Toyo)
#13, 28820-PPW-013 Pick-Up Assembly (Toyo)
#14, 90471-PW7-A00 Gasket (10MM)
#16, 91309-PX4-003 O-Ring (16X2.1) (Nok)
#17, 91329-PRP-003 O-Ring (23.3X2.4)

(REF#3,645 )

#3, 21396-PX5-000 Cap, Breather
#9, 28451-PRP-010 Gasket, Solenoid Cover

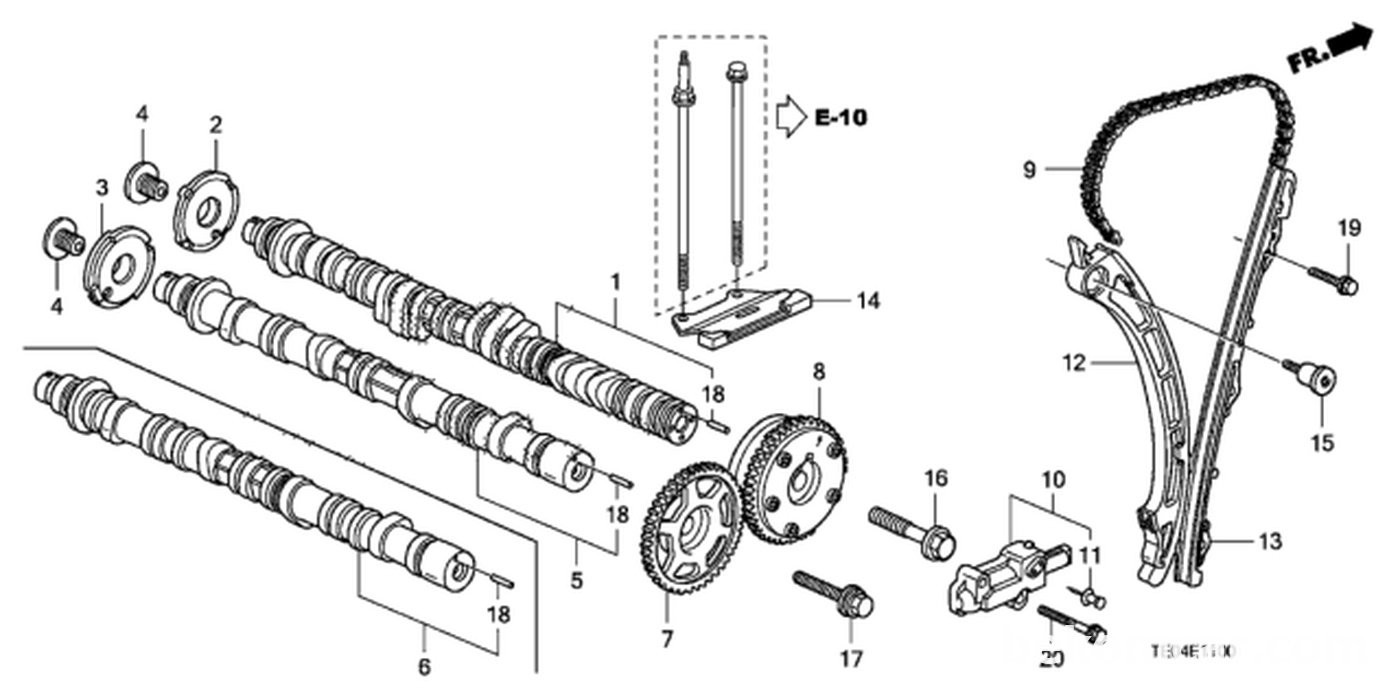

(REF#2,607 )

#8. 14310-R5A-305 Actuator, VTC (46T)

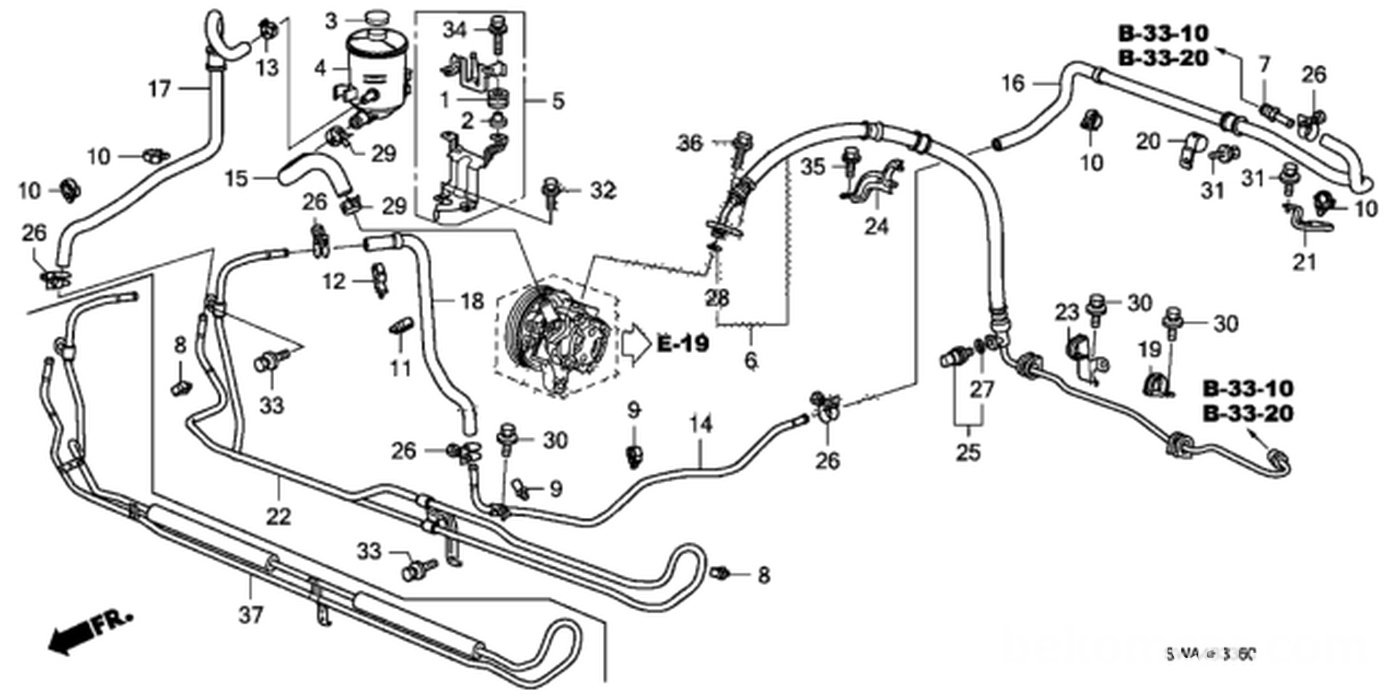

(REF#2,382 )

#4. 53701-SWA-A01Tank, Power Steering Oil
#6. 53713-SWA-A03Hose, Power Steering Feed
#16. 53732-SWA-A02Hose, Power Steering Return

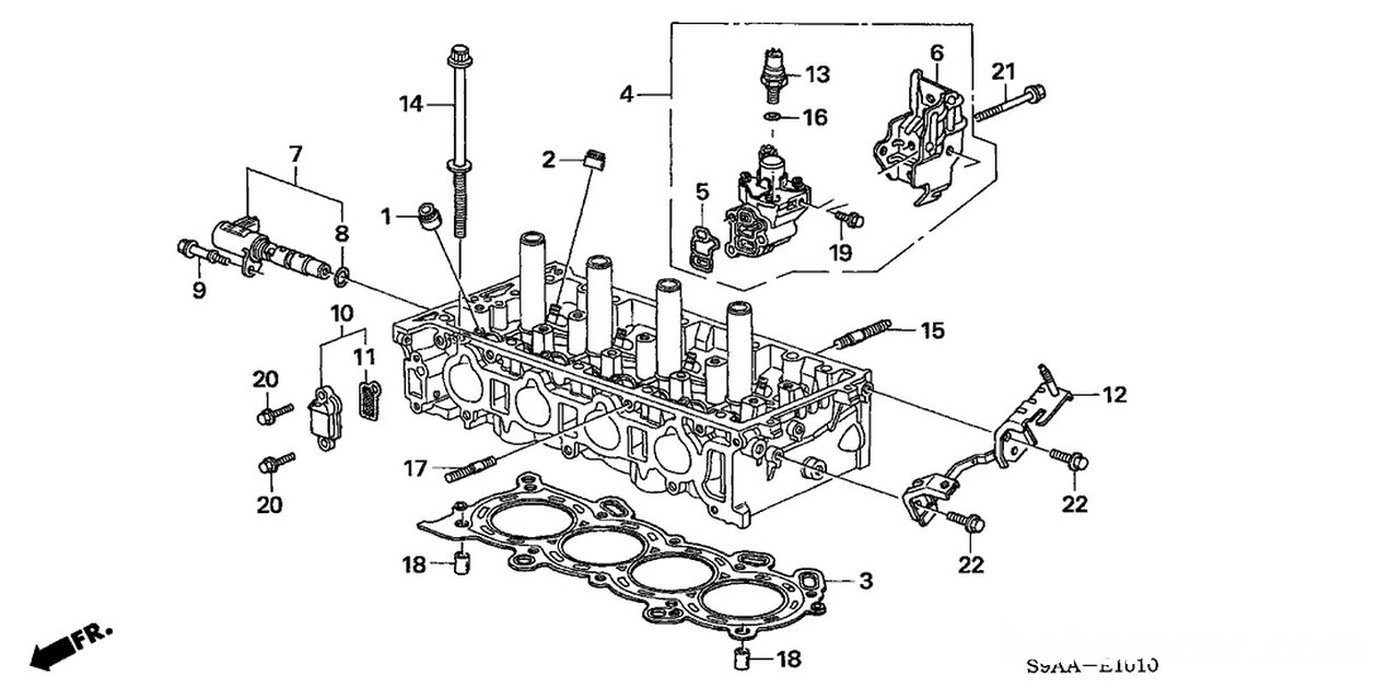

(REF#2,307 )

#4. 15810-RAA-A03 Valve Assembly, Spool
#5. 15815-RAA-A02, Filter Assy., Spool Valve
#7. 15830-RBB-003Valve Assembly, Vtc Oil Control
#8. 15832-PNA-023, O-Ring
#10 15840-RAA-A00 (15840-PNA-000) Honda Strainer Assy., Vtc
#11 15845-RAA-A01, Filter Assy., VTC
#13 37250-PNE-G01 Switch Assembly, Valve Timing Oil Pressure
#16. 91319-PAA-A01, O-Ring (13X1.5)

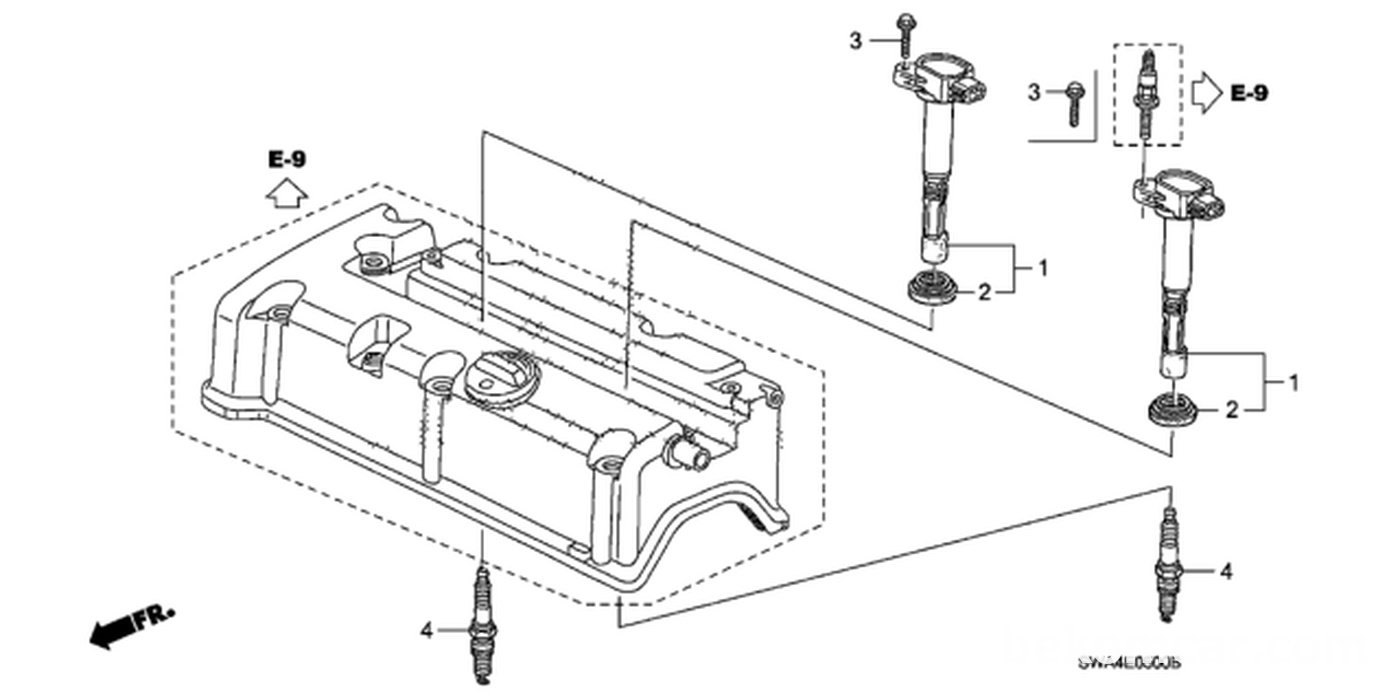

(REF#2,211 )

CRV3세대용
#1. 30520-RRA-007. Coil, Plug Hole
#4. 9807B-5617W Spark Plug (Izfr6K11) (Ngk)

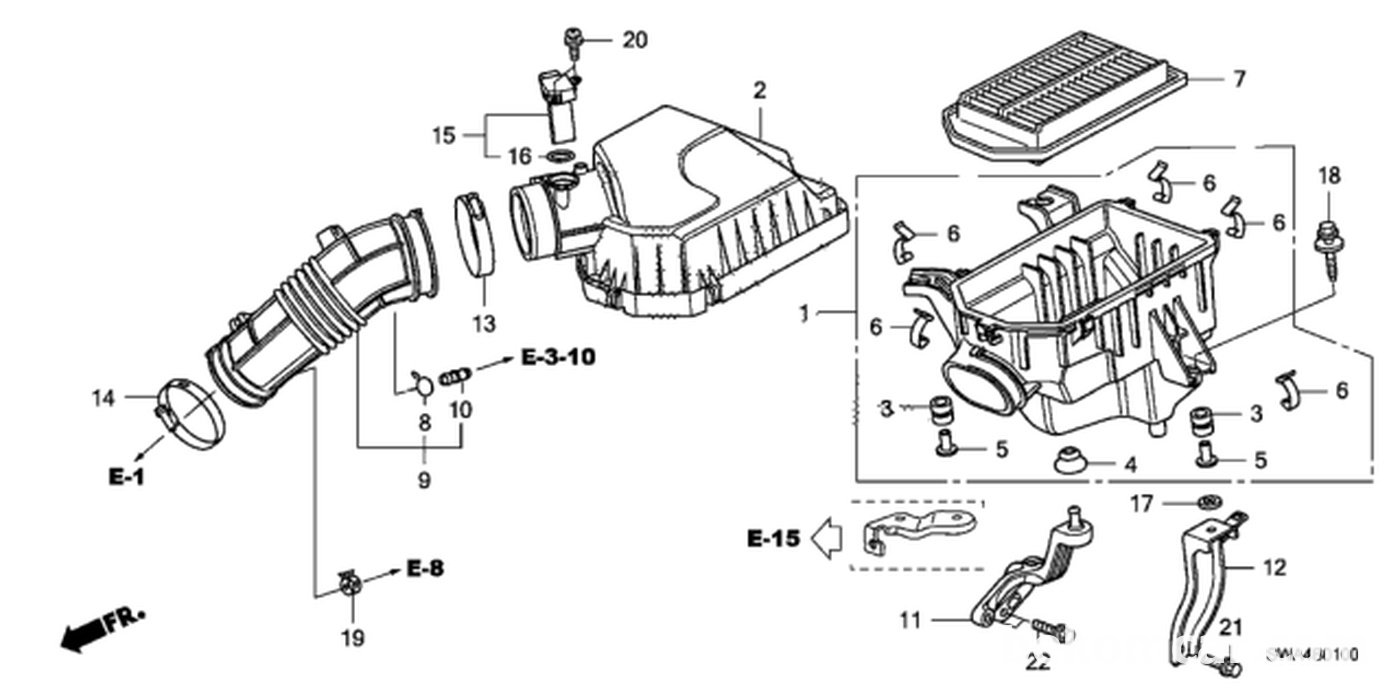

(REF#2,208 )

CRV3세대전용 ㅡ 에어플로우 튜브
#9. 17228-RZA-000. Tube Assembly, Air Flow

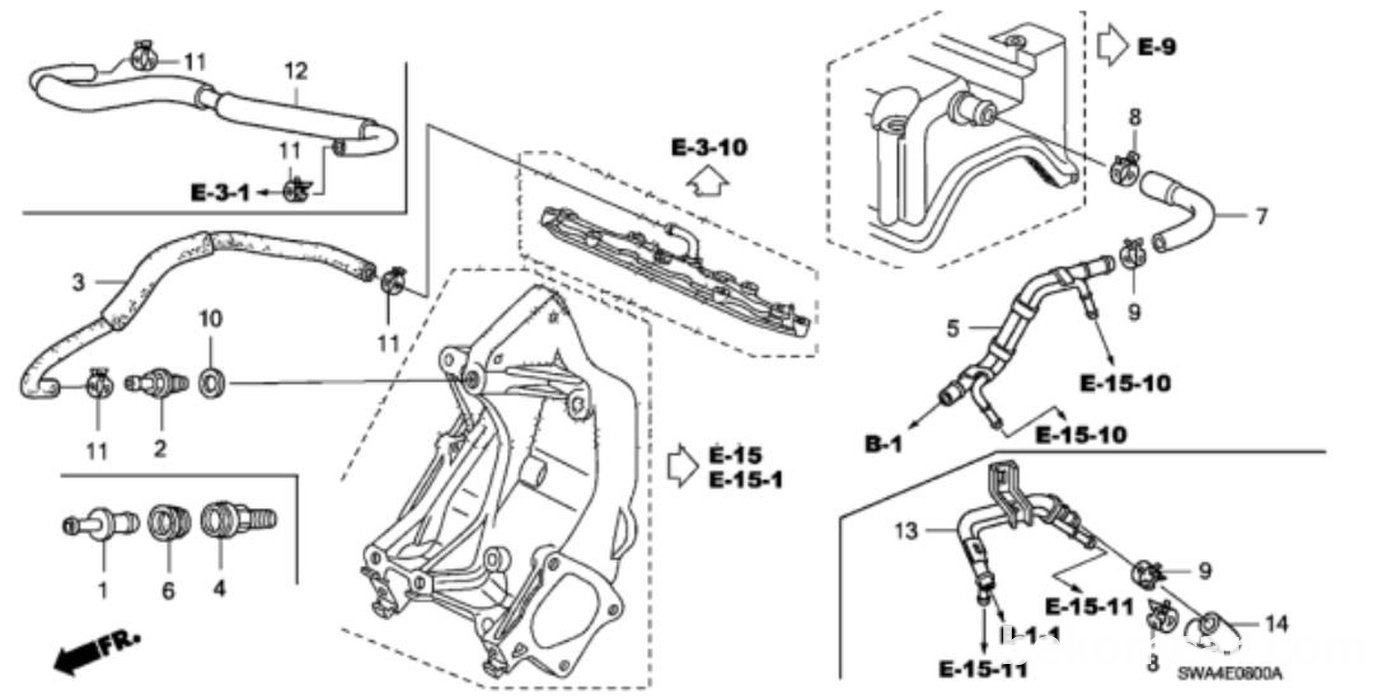

(REF#2,123 )

#1. 17130-PNA-003 VALVE ASSY., PCV Genuine Honda (단종된듯 하나 확실하지 않음)
#2. 17130-PND-A01Valve Assembly, PCV (개선품처럼 판단됨, 확실하지 않음)
참고사항: #1번 바꾸어도 된다. 이건 교환도 단순하다. 하지만 #2를 선택하면 교환시 벨트풀고 파워펌프, 텐셔너등도 다 풀어야 한다.
